Headlight for BMW 3 Series E46 320Ci (2003)

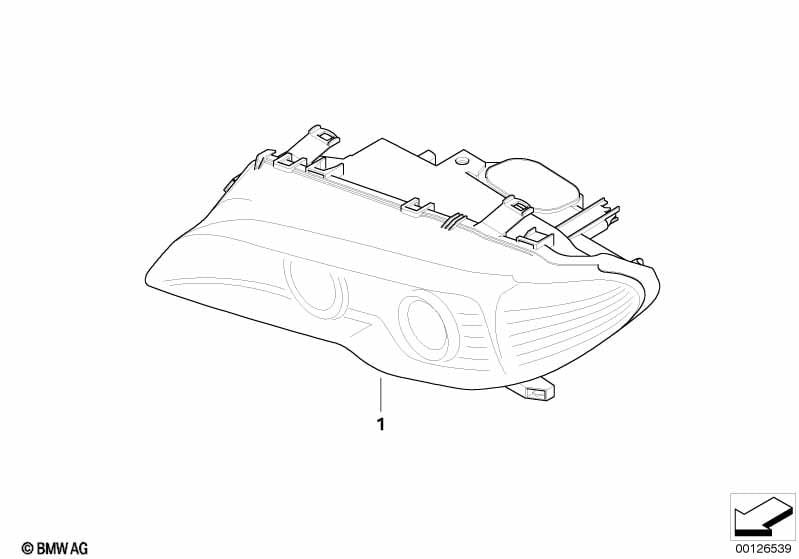

This Headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Headlight Xenon does not comprise ignition control unit and Xenon light bulb |
|||||||||
| 01 | Headlight left, turn indicator yellow | 1 | 03/2003 | 63126920575 | Shop at ECS Tuning | |||||
| 01 | Headlight right, turn indicator yellow | 1 | 03/2003 | 63126920576 | Shop at ECS Tuning | |||||
| 01 | Headlight left, turn indicator yellow | TITAN | 1 | 03/2003 | 63126920617 | +core | Shop at ECS Tuning | |||
| 01 | Headlight right, turn indicator yellow | TITAN | 1 | 03/2003 | 63126920618 | Shop at ECS Tuning | ||||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 01 | Left headlight, white turn indicator | 1 | 03/2003 | 63127165889 | Shop at ECS Tuning | |||||
| 01 | Right headlight, white turn indicator | 1 | 03/2003 | 63127165890 | Shop at ECS Tuning | |||||
| 01 | Left headlight, white turn indicator | TITAN | 1 | 03/2003 | 63127165919 | Shop at ECS Tuning | ||||
| 01 | Right headlight, white turn indicator | TITAN | 1 | 03/2003 | 63127165920 | Shop at ECS Tuning | ||||
| For vehicles with Xenon Light |
S522A=Yes |
|||||||||
| 01 | Bi-xenon headlight, left | 1 | 03/2003 | 63126935715 | Shop at ECS Tuning | |||||
| 01 | Bi-xenon headlight, right | 1 | 03/2003 | 63126935716 | Shop at ECS Tuning | |||||
| 01 | Bi-xenon headlight, left | TITAN | 1 | 03/2003 | 63126935731 | +core | Shop at ECS Tuning | |||
| 01 | Bi-xenon headlight, right | TITAN | 1 | 03/2003 | 63126935732 | Shop at ECS Tuning | ||||
| For vehicles with Xenon Light and Adaptive Headlights |
S522A=Yes S524A=Yes |
|||||||||
| 01 | Bi-xenon headlight AKL, left | TITAN | 1 | 03/2003 | 63126935733 | Shop at ECS Tuning | ||||
| 01 | Bi-xenon headlight AKL, right | TITAN | 1 | 03/2003 | 63126935734 | Shop at ECS Tuning | ||||
| For vehicles with Xenon Light and White direction indicator lights |
S522A=Yes S785A=Yes |
|||||||||
| 01 | Bi-xenon headlight, left | 1 | 03/2003 | 63127165939 | Shop at ECS Tuning | |||||
| 01 | Bi-xenon headlight, right | 1 | 03/2003 | 63127165940 | Shop at ECS Tuning | |||||
| 01 | Bi-xenon headlight, left | TITAN | 1 | 03/2003 | 63127165957 | Shop at ECS Tuning | ||||
| 01 | Bi-xenon headlight, right | TITAN | 1 | 03/2003 | 63127165958 | Shop at ECS Tuning | ||||
| For vehicles with Xenon Light and Adaptive Headlights and White direction indicator lights |
S522A=Yes S524A=Yes S785A=Yes |
|||||||||
| 01 | Bi-xenon headlight AKL, left | TITAN | 1 | 03/2003 | 63127165959 | Shop at ECS Tuning | ||||
| 01 | Bi-xenon headlight AKL, right | TITAN | 1 | 03/2003 | 63127165960 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
