Reflector for BMW 5 Series E60 525d (2002)

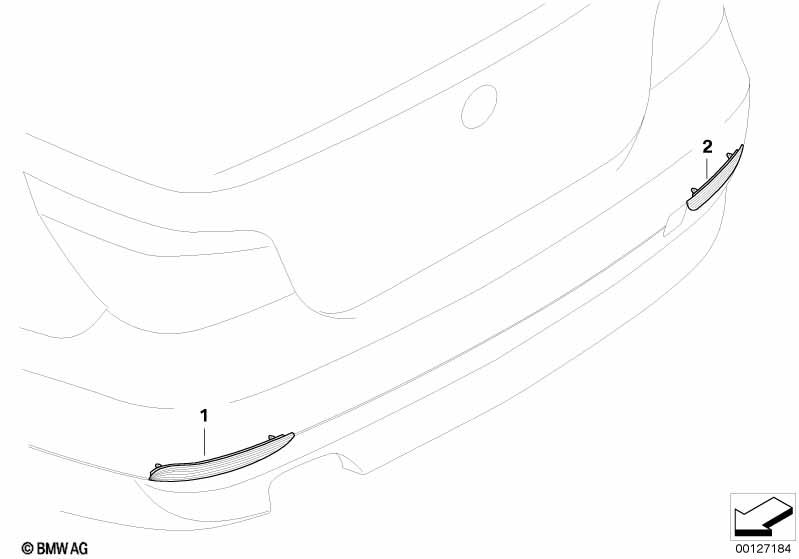

This Reflector technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Reflector left | 1 | 63146915039 | $13.17 | Shop at ECS Tuning | |||||
| 02 | Reflector right | 1 | 63146915040 | $13.17 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525d Reflector?
- This technical diagram illustrates the Reflector within the Lighting group for the 5 Series E60 525d produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Reflector left (Part #63146915039).
- Which models use the hardware listed in this Reflector?
- The hardware and components featured in the Reflector are specific to the 5 Series E60 525d produced during 2002. These technical specifications ensure that parts like the Reflector left (63146915039) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Reflector assembly?
- Each item in the Reflector corresponds to the numbered list below the illustration. For the 5 Series E60 525d, you can identify the Reflector left by locating its position on the schematic, which then links to the official BMW part number 63146915039 for the Lighting section.
