Various lamps/spare bulbs box for BMW 5 Series E60 525i (2007)

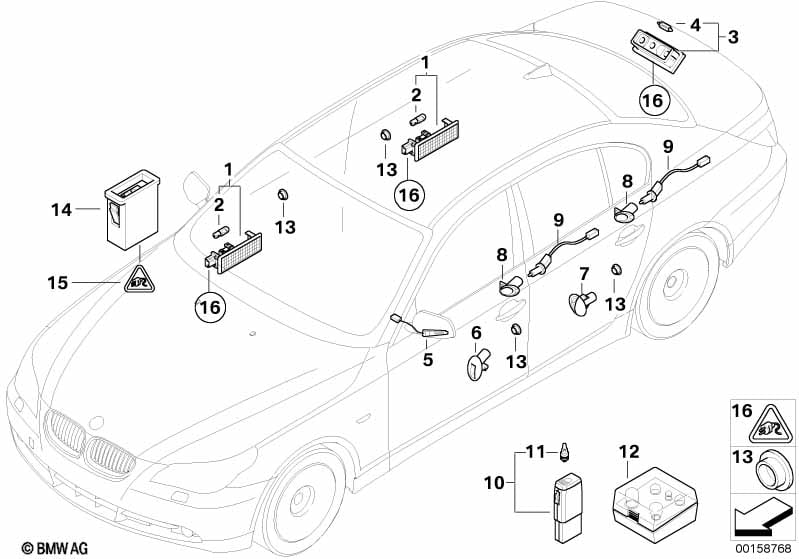

This Various lamps/spare bulbs box technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Exit lighting in doors | ||||||||||
| 01 | Interior light | 5W TRÜB | 4 | 63316972605 | $11.92 | Shop at ECS Tuning | ||||
| 01 | Courtesy light | 5W KLAR | 4 | 63316961999 | $5.65 | Shop at ECS Tuning | ||||
| 02 | Longlife bulb | 5W | 4 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| Luggage compartment lighting | ||||||||||
| 03 | Interior light | 10W | 2 | 63316962039 | $11.92 | Shop at ECS Tuning | ||||
| 04 | Bulb | 12V 10W | 2 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| For vehicles with Light package For M models, see ITU 51_5549 Item 1 |
S563A=Yes |
|||||||||
| 05 | Lamp outside mirror, left | 1 | 63316913277 | $93.38 | Shop at ECS Tuning | |||||
| 05 | Lamp outside mirror, right | 1 | 63316913278 | $93.38 | Shop at ECS Tuning | |||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 06 | Door pocket lighting, front | SCHWARZ | 2 | 63316927005 | $1.82 | Shop at ECS Tuning | ||||
| 06 | Door pocket lighting, front | BEIGE | 2 | 63316927007 | $1.82 | Shop at ECS Tuning | ||||
| 06 | Door pocket lighting, front | BRAUN | 2 | 63316927011 | $1.82 | ENDED | Shop at ECS Tuning | |||
| 06 | Door pocket lighting, front | GRAU | 2 | 63316927013 | $1.82 | Shop at ECS Tuning | ||||
| 07 | Door pocket lighting, rear | SCHWARZ | 2 | 63316927006 | $1.82 | Shop at ECS Tuning | ||||
| 07 | Door pocket lighting, rear | BEIGE | 2 | 63316927008 | $1.82 | Shop at ECS Tuning | ||||
| 07 | Door pocket lighting, rear | BRAUN | 2 | 63316927012 | $1.82 | ENDED | Shop at ECS Tuning | |||
| 07 | Door pocket lighting, rear | GRAU | 2 | 63316927014 | $1.82 | ENDED | Shop at ECS Tuning | |||
| 08 | Door handle illumination | 4 | 63316928599 | $1.82 | Shop at ECS Tuning | |||||
| 09 | LED module for door trim panel | 4 | 63316929662 | $8.90 | Shop at ECS Tuning | |||||
| 11 | Bulb | 0,25 A | 1 | 63217167019 | $1.50 | ENDED | Shop at ECS Tuning | |||
| 13 | Reflector | RUBIN | 4 | 51717161921 | $3.27 | Shop at ECS Tuning | ||||
| 14 | Support f chargeable handlamp | 1 | 61138352336 | $17.23 | Shop at ECS Tuning | |||||
| 15 | Universal socket housing, uncoded | 3 POL. | 1 | 61138352304 | $16.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 with cable | 0,5-1,0 MM² SN | 1 | 61135A07B73 | Shop at ECS Tuning | |||||
| 16 | Universal socket housing uncoded | 3 POL. | 2 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 2 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 2 | 61130056960 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
