Headlight for BMW 6 Series E64 645Ci (2005)

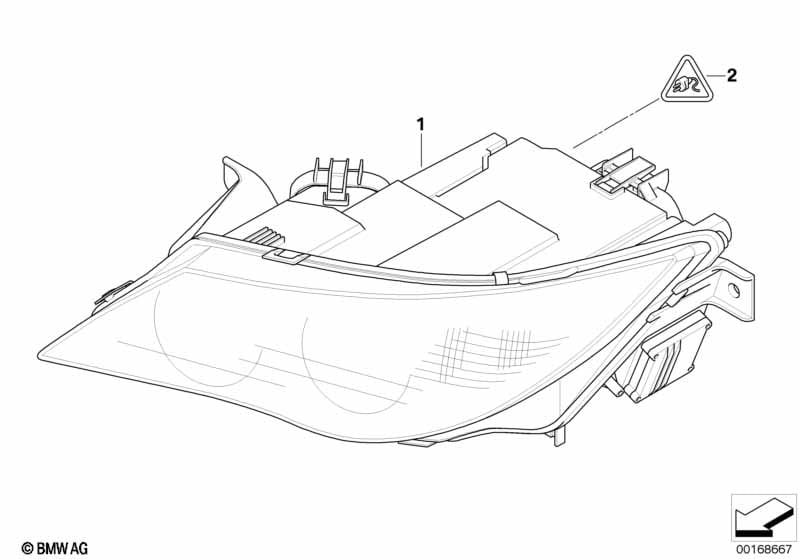

This Headlight technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 645Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Headlight Xenon does not comprise ignition control unit and Xenon light bulb |
|||||||||
| 01 | Bi-xenon headlight, left | 1 | 09/2007 | 63127165975 | Shop at ECS Tuning | |||||
| 01 | Bi-xenon headlight, right | 1 | 09/2007 | 63127165976 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive Headlights |
S524A=Yes |
|||||||||
| 01 | Bi-xenon headlight AKL, left | 1 | 09/2007 | 63127165981 | Shop at ECS Tuning | |||||
| 01 | Bi-xenon headlight AKL, right | 1 | 09/2007 | 63127165982 | Shop at ECS Tuning | |||||
| 02 | Rep. kit for socket housing | 12 POL. | 2 | 61132359991 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Universal pin terminal uncoded | 6 POL. | 2 | 61136901725 | $2.32 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
