Front turn indicator for BMW 6 Series E63 650i (2007)

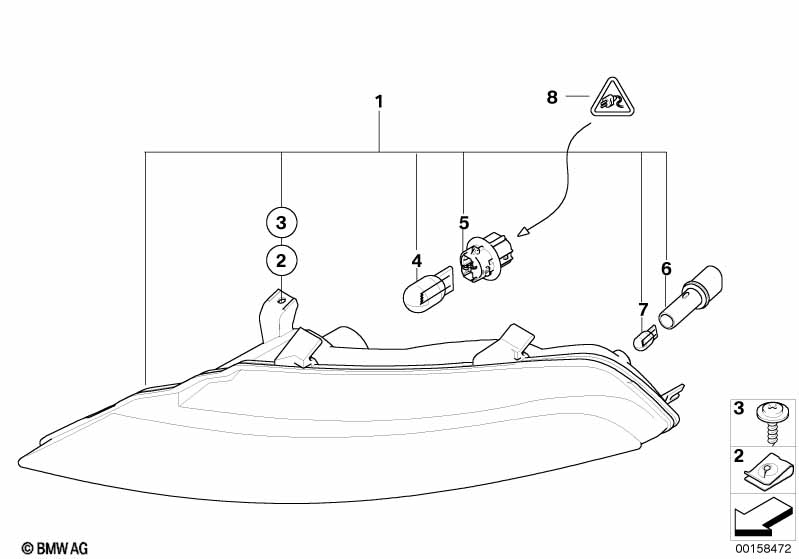

This Front turn indicator technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left direction indicator light, white | 1 | 09/2007 | 63137165805 | Shop at ECS Tuning | |||||
| 01 | Right direction indicator light, white | 1 | 09/2007 | 63137165806 | Shop at ECS Tuning | |||||
| 02 | Body nut | ST4,2-4 | 6 | 07129904144 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Sheet metal screw | ST4,2X16-U2-C-H | 6 | 07119903911 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Bulb yellow | 12V 21W | 4 | 07119905329 | $25.94 | Shop at ECS Tuning | ||||
| Deletion of part number 7160872 as no longer available, use 9 905 329 for this. -> Part No. is yellow, however, instead of silver. As a result, must be replaced as a pair. |
||||||||||
| 05 | Bulb socket, turn indicator with handle | 2 | 63126943484 | $15.63 | Shop at ECS Tuning | |||||
| 05 | Bulb socket, turn indicator, white | 2 | 63136926468 | $9.05 | Shop at ECS Tuning | |||||
| 08 | Universal socket housing uncoded | 2 POL. | 2 | 61138373332 | $2.70 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cont.bush.ELO-power sg.cond.seal w/cable | 0,2- 0,5 MM² SN | 2 | 61130070581 | Shop at ECS Tuning | |||||
