Rear light in the side panel for BMW 5 Series E61 523i (2007)

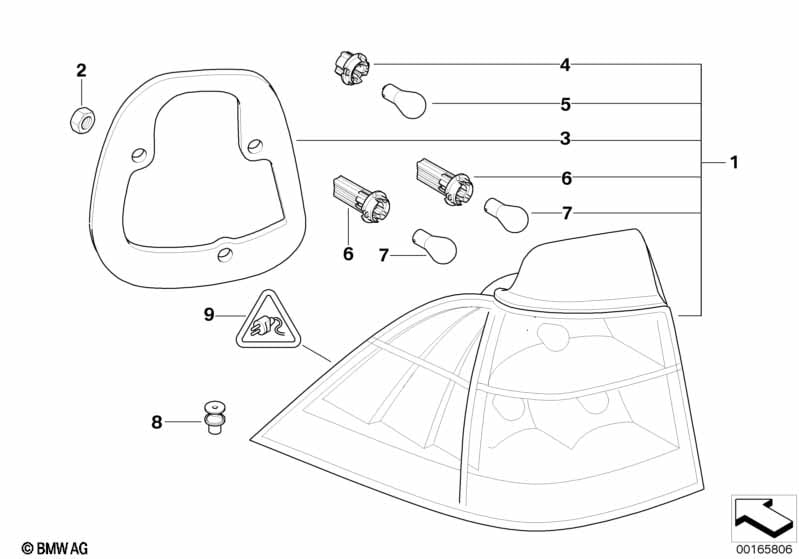

This Rear light in the side panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear light in the side panel, white left | 1 | 63217165825 | Shop at ECS Tuning | ||||||
| 01 | Rear light in the side panel,white right | 1 | 63217165826 | Shop at ECS Tuning | ||||||
| 02 | Hex nut with plate | M5 | 6 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 03 | Seal, rear light, side panel | 2 | 63126941472 | ENDED | Shop at ECS Tuning | |||||
| 05 | Bulb yellow | PY21W/12V/21W | 2 | 63217160791 | $5.58 | Shop at ECS Tuning | ||||
| 05 | Bulb silver | 12V 21W | 2 | 63217160897 | $19.40 | Shop at ECS Tuning | ||||
| For vehicles with Xenon Light or Adaptive Headlights |
S522A=No S524A=No |
|||||||||
| 05 | Conversion kit, bulbs, silver | 1 | 63120420391 | $86.00 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Bulb socket | 4 | 63211387697 | $8.17 | Shop at ECS Tuning | |||||
| 07 | Longlife bulb | P21W/12V/21W | 4 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 08 | Clip, rear light | 2 | 07147143826 | $0.47 | Shop at ECS Tuning | |||||
| 09 | Universal socket housing uncoded | 4 POL. | 2 | 61136984750 | $5.03 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,75-1,0 MM² SN | X | 61130056965 | Shop at ECS Tuning | |||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | X | 61138369634 | $0.55 | Shop at ECS Tuning | ||||
| 09 | Rep. kit for socket housing | 4 POL. | 2 | 61132359996 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
