Various lamps/spare bulbs box for BMW 1 Series E81 120i (2010)

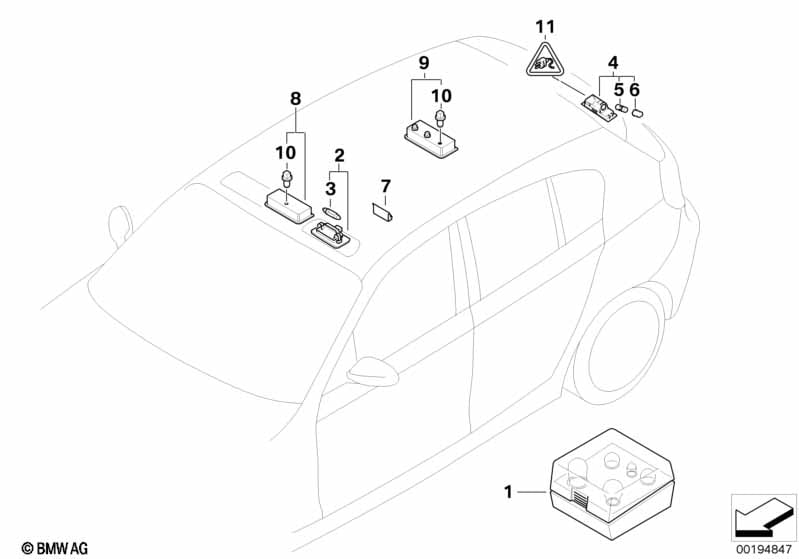

This Various lamps/spare bulbs box technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spare bulbs box | 1 | 63212318120 | Shop at ECS Tuning | ||||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 02 | Mirror lamp | SCHWARZ | 2 | 63316962013 | $10.07 | Shop at ECS Tuning | ||||
| 02 | Mirror lamp | ALASKAGRAU | 2 | 63316962015 | Shop at ECS Tuning | |||||
| 02 | Mirror lamp | GREIGE 87 | 2 | 63316962016 | $10.07 | Shop at ECS Tuning | ||||
| 03 | Bulb | 12V 10W | 2 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 04 | License plate lamp, LED | 2 | 09/2007 | 63267193294 | $15.33 | +core | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,2- 0,5 QMM | X | 09/2007 | 61130005199 | $1.88 | Shop at ECS Tuning | |||
| -- | Contact bushing MQS ELA with cable | 0,75 QMM | X | 09/2007 | 61130006665 | $1.97 | ENDED | Shop at ECS Tuning | ||

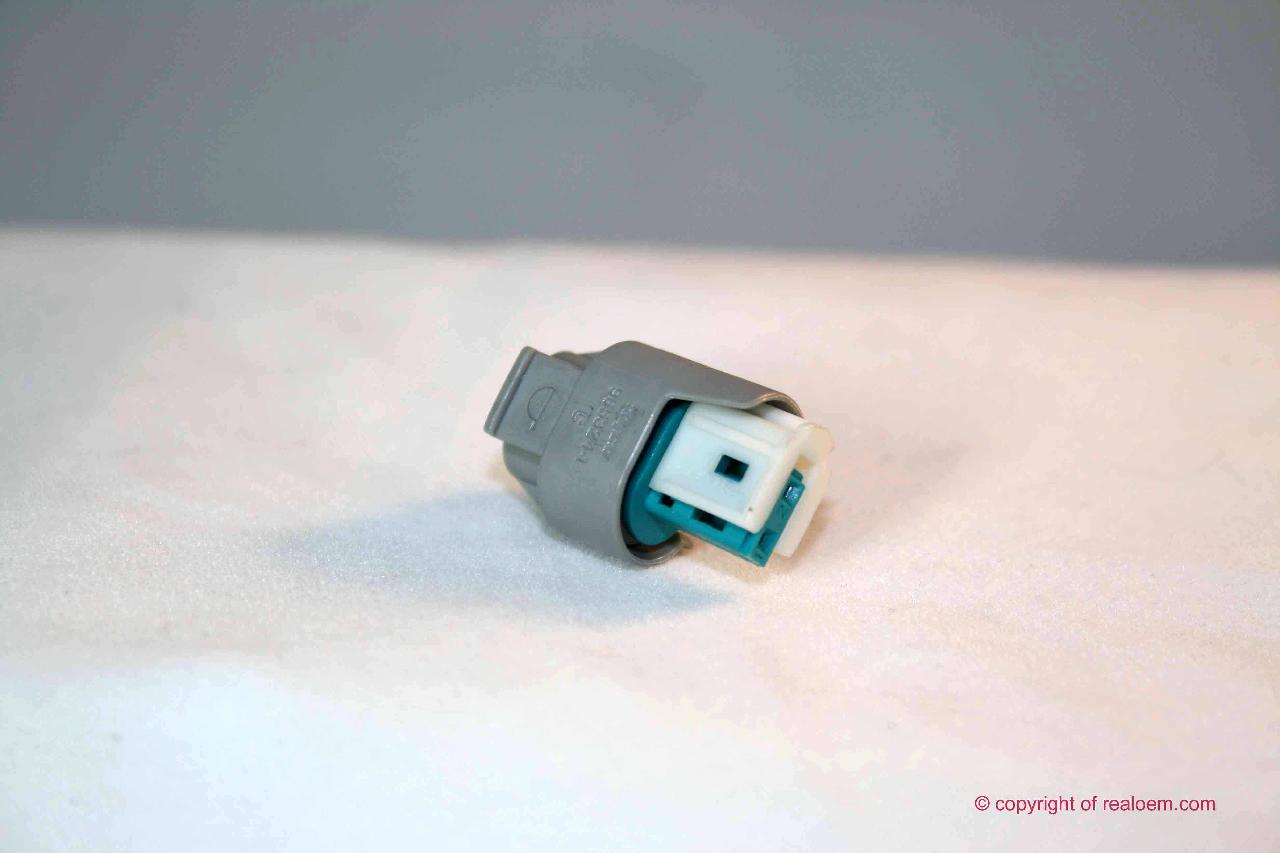

| -- | Universal socket housing uncoded | 2 POL. | X | 09/2007 | 61138365340 | $2.98 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Longlife bulb | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Bulb socket | 2 | 63138360205 | $7.32 | Shop at ECS Tuning | |||||
| 07 | Clamp | 2 | 51448181426 | $0.61 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Integrated universal remote control and Glass roof, electrical and Interior mirror with automatic-dip and Rain sensor and Automatic air conditioning and Light package and Voice control and Preparation, mobile phone, Business and Preparation f tel.installation universal and Preparation f mobile phone w Bluetooth |
S302A=No S319A=No S403A=No S431A=No S521A=No S534A=No S563A=No S620A=No S633A=No S640A=No S644A=No |
|||||||||
| 08 | Interior light, front | 1 | 61316951260 | $60.52 | Shop at ECS Tuning | |||||
| 09 | Interior light, rear | 1 | 61316951252 | $31.48 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system |
S302A=Yes |
|||||||||
| 09 | Interior light, rear | ALASKAGRAU | 1 | 61319201635 | +core | Shop at ECS Tuning | ||||
| 09 | Interior light, rear | GREIGE 87 | 1 | 61319201636 | +core | Shop at ECS Tuning | ||||
| For vehicles with Alarm system and Light package |
S302A=Yes S563A=Yes |
|||||||||
| 09 | Interior reading light, rear center | ALASKAGRAU | 1 | 61319201641 | Shop at ECS Tuning | |||||
| 09 | Interior reading light, rear center | GREIGE 87 | 1 | 61319201642 | +core | Shop at ECS Tuning | ||||
| 09 | Interior reading light, rear | SCHWARZ | 1 | 61319201645 | $94.15 | Shop at ECS Tuning | ||||
| For vehicles with Alarm system and Light package |
S302A=No S563A=Yes |
|||||||||
| 09 | Interior reading light, rear | 1 | 61319201628 | Shop at ECS Tuning | ||||||
| 10 | Bulb | 12V 6W XENON | X | 63217160908 | $7.94 | Shop at ECS Tuning | ||||
| 11 | Rep. kit for socket housing | 2 POL. | 2 | 61132359999 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E81 120i Various lamps/spare bulbs box?
- This technical diagram illustrates the Various lamps/spare bulbs box within the Lighting group for the 1 Series E81 120i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Spare bulbs box (Part #63212318120).
- Which models use the hardware listed in this Various lamps/spare bulbs box?
- The hardware and components featured in the Various lamps/spare bulbs box are specific to the 1 Series E81 120i produced during 2010. These technical specifications ensure that parts like the Spare bulbs box (63212318120) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Various lamps/spare bulbs box assembly?
- Each item in the Various lamps/spare bulbs box corresponds to the numbered list below the illustration. For the 1 Series E81 120i, you can identify the Spare bulbs box by locating its position on the schematic, which then links to the official BMW part number 63212318120 for the Lighting section.
