Fog lamp M-Technik for BMW 5 Series E60 523Li (2023)

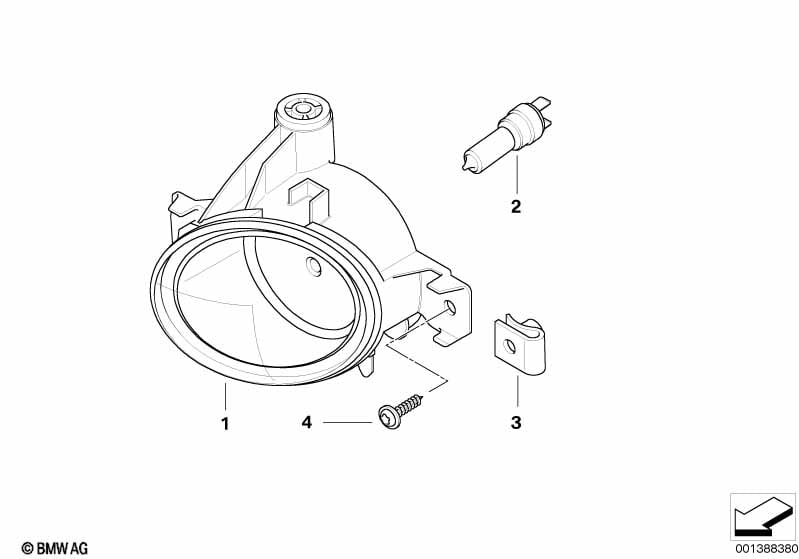

This Fog lamp M-Technik technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 523Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fog lights, left | 1 | 63177897187 | $125.48 | Shop at ECS Tuning | |||||
| 01 | Fog lights, right | 1 | 63177897188 | $125.48 | Shop at ECS Tuning | |||||
| 02 | Low beam and/or fog lightbulb | HB4 12V 55W | 2 | 63217160786 | $18.86 | Shop at ECS Tuning | ||||
| 03 | Body nut | ST4,8-16-ZNS3 | 4 | 07129904243 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Screw | ST 4.8X13 | 4 | 07149156623 | $0.73 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 523Li Fog lamp M-Technik?
- This technical diagram illustrates the Fog lamp M-Technik within the Lighting group for the 5 Series E60 523Li produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Fog lights, left (Part #63177897187).
- Which models use the hardware listed in this Fog lamp M-Technik?
- The hardware and components featured in the Fog lamp M-Technik are specific to the 5 Series E60 523Li produced during 2023. These technical specifications ensure that parts like the Fog lights, left (63177897187) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fog lamp M-Technik assembly?
- Each item in the Fog lamp M-Technik corresponds to the numbered list below the illustration. For the 5 Series E60 523Li, you can identify the Fog lights, left by locating its position on the schematic, which then links to the official BMW part number 63177897187 for the Lighting section.
