Rear light for BMW 3 Series E90 330d (2008)

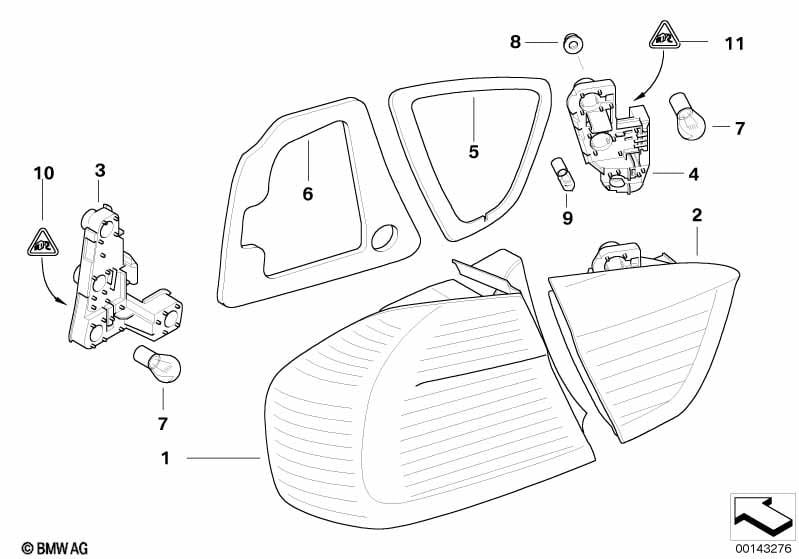

This Rear light technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear light in the side panel, left | 1 | 63216937457 | Shop at ECS Tuning | ||||||
| 01 | Rear light in the side panel, right | 1 | 63216937458 | Shop at ECS Tuning | ||||||
| 02 | Rear light in trunk lid, left | 1 | 63216937459 | $101.97 | +core | Shop at ECS Tuning | ||||
| 02 | Rear light in trunk lid, right | 1 | 63216937460 | $101.97 | Shop at ECS Tuning | |||||
| 03 | Bulb socket, rear light side panel, left | 1 | 63216937473 | $19.65 | Shop at ECS Tuning | |||||
| 03 | Bulb socket, rear light side panel,right | 1 | 63216937474 | $19.65 | Shop at ECS Tuning | |||||
| 04 | Bulb socket,rear light in trunk lid,left | 1 | 63217183841 | $13.72 | Shop at ECS Tuning | |||||
| 04 | Bulb socket,rear light in trunk lid,rght | 1 | 63217183842 | $13.72 | Shop at ECS Tuning | |||||
| 05 | Seal, rear light,luggage-compartment lid | LINKS U. RECHTS | 2 | 63216937472 | $5.98 | Shop at ECS Tuning | ||||
| 06 | Seal, rear light, side panel left | 1 | 63216937469 | $7.46 | Shop at ECS Tuning | |||||
| 06 | Seal, rear light, side panel right | 1 | 63216937470 | $7.46 | Shop at ECS Tuning | |||||
| 07 | Longlife bulb | P21W/12V/21W | 12 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 08 | Hex nut with plate | M5-8-ZNNIV SI | 6 | 07129904381 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Longlife bulb | 12V 21W H21W | 2 | 63217160788 | $11.70 | Shop at ECS Tuning | ||||
| 10 | Socket housing | 6 POL. | 2 | 61138369702 | $0.75 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,75-1,0 MM² SN | 2 | 61130056965 | Shop at ECS Tuning | |||||
| 10 | Universal MPQ socket housing uncoded | 6 POL. | 2 | 61136984758 | $3.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | 2 | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | 2 | 61138364834 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,35-0,5 MM² SN | 2 | 61138377162 | $0.35 | Shop at ECS Tuning | ||||
| 11 | Universal socket housing uncoded | 4 POL. | 2 | 61136984750 | $5.03 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,75-1,0 MM² SN | 2 | 61130056965 | Shop at ECS Tuning | |||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² SN | 2 | 61130070583 | Shop at ECS Tuning | |||||
| 11 | Rep. kit for socket housing | 4 POL. | 2 | 61132359996 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 330d Rear light?
- This technical diagram illustrates the Rear light within the Lighting group for the 3 Series E90 330d produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Rear light in the side panel, left (Part #63216937457).
- Which models use the hardware listed in this Rear light?
- The hardware and components featured in the Rear light are specific to the 3 Series E90 330d produced during 2008. These technical specifications ensure that parts like the Rear light in the side panel, left (63216937457) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear light assembly?
- Each item in the Rear light corresponds to the numbered list below the illustration. For the 3 Series E90 330d, you can identify the Rear light in the side panel, left by locating its position on the schematic, which then links to the official BMW part number 63216937457 for the Lighting section.
