Registration plate light for BMW 3 Series E91 320d (2007)

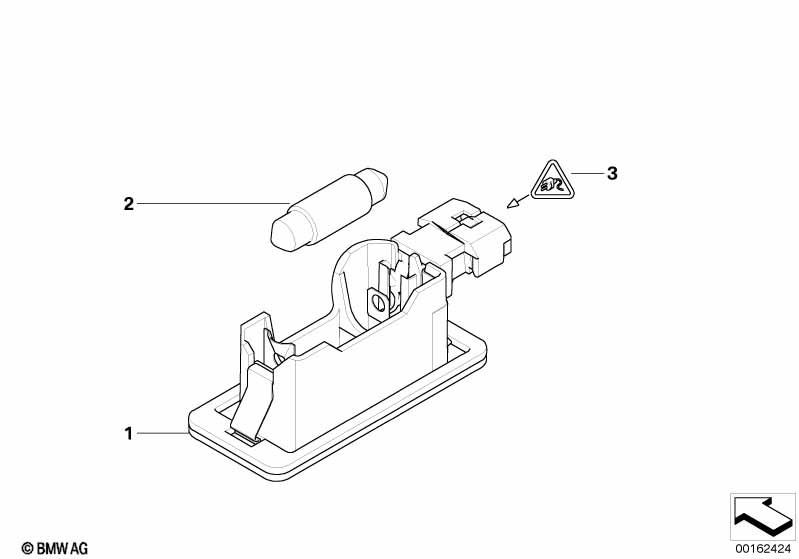

This Registration plate light technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Registration plate light | 2 | 09/2007 | 63267165646 | $7.92 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Registration plate light | 2 | 09/2007 | 63268360591 | $7.37 | ENDED | Shop at ECS Tuning | |||
| 02 | Bulb | 12V 5W | 2 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 03 | Plug terminal black | 2 POL. | 2 | 61131378149 | $1.62 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 ELA with cable | 1,0-2,5 MM² | X | 61130007571 | $2.65 | Shop at ECS Tuning | ||||
| suitable for use with LED light | ||||||||||
| 03 | Universal socket housing uncoded | 2 POL. | 2 | 06/2014 | 61136925634 | $1.65 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | 2 | 06/2014 | 61131383776 | $0.28 | Shop at ECS Tuning | |||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | 2 | 06/2014 | 61131393724 | $0.28 | Shop at ECS Tuning | |||
| 03 | Rep. kit for socket housing | 2 POL. | 2 | 61132360043 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | 2 | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | 2 | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 320d Registration plate light?
- This technical diagram illustrates the Registration plate light within the Lighting group for the 3 Series E91 320d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Registration plate light (Part #63267165646).
- Which models use the hardware listed in this Registration plate light?
- The hardware and components featured in the Registration plate light are specific to the 3 Series E91 320d produced during 2007. These technical specifications ensure that parts like the Registration plate light (63267165646) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Registration plate light assembly?
- Each item in the Registration plate light corresponds to the numbered list below the illustration. For the 3 Series E91 320d, you can identify the Registration plate light by locating its position on the schematic, which then links to the official BMW part number 63267165646 for the Lighting section.
