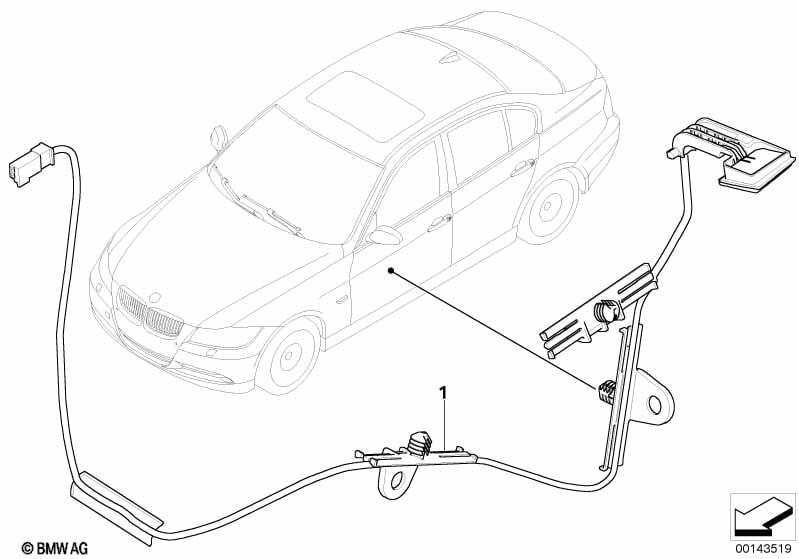

Door handle illumination for BMW 3 Series E91 LCI 320d (2012)
This Door handle illumination technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 01 | Door handle lighting, left | 2 | 63317181313 | $40.08 | Shop at ECS Tuning | |||||
| 01 | Door handle lighting, right | 2 | 63317181314 | $40.08 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 LCI 320d Door handle illumination?
- This technical diagram illustrates the Door handle illumination within the Lighting group for the 3 Series E91 LCI 320d produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Door handle lighting, left (Part #63317181313).
- Which models use the hardware listed in this Door handle illumination?
- The hardware and components featured in the Door handle illumination are specific to the 3 Series E91 LCI 320d produced during 2012. These technical specifications ensure that parts like the Door handle lighting, left (63317181313) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door handle illumination assembly?
- Each item in the Door handle illumination corresponds to the numbered list below the illustration. For the 3 Series E91 LCI 320d, you can identify the Door handle lighting, left by locating its position on the schematic, which then links to the official BMW part number 63317181313 for the Lighting section.
