Third stoplamp for BMW 3 Series E91 LCI 320d (2012)

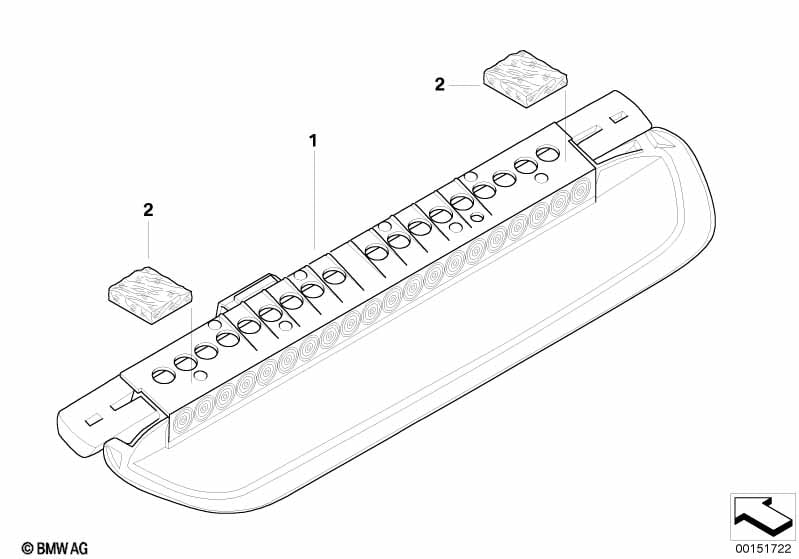

This Third stoplamp technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Third stoplamp | 1 | 63257145669 | $99.25 | Shop at ECS Tuning | |||||
| 02 | Set felt strip self-adhesive | 2 | 51452353024 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 LCI 320d Third stoplamp?
- This technical diagram illustrates the Third stoplamp within the Lighting group for the 3 Series E91 LCI 320d produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Third stoplamp (Part #63257145669).
- Which models use the hardware listed in this Third stoplamp?
- The hardware and components featured in the Third stoplamp are specific to the 3 Series E91 LCI 320d produced during 2012. These technical specifications ensure that parts like the Third stoplamp (63257145669) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Third stoplamp assembly?
- Each item in the Third stoplamp corresponds to the numbered list below the illustration. For the 3 Series E91 LCI 320d, you can identify the Third stoplamp by locating its position on the schematic, which then links to the official BMW part number 63257145669 for the Lighting section.
