Individual parts for headlamp, halogen for BMW 3 Series E91 325d (2008)

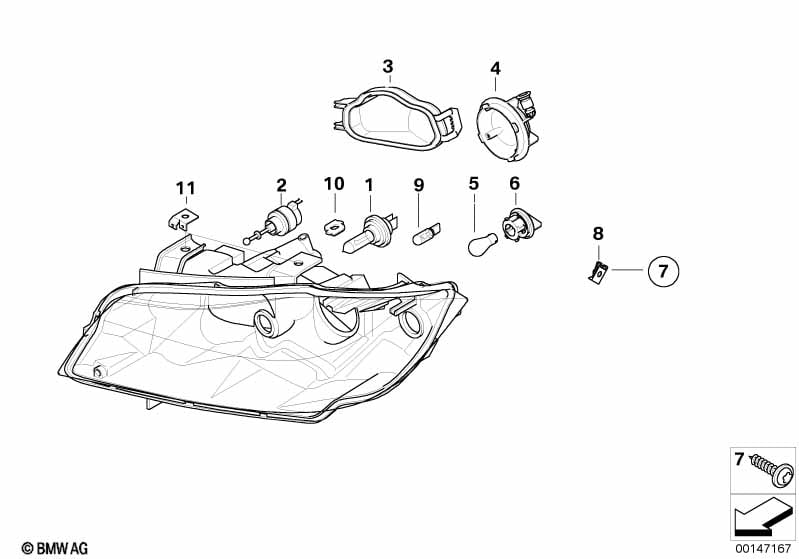

This Individual parts for headlamp, halogen technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.

Individual parts for headlamp, halogen
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Xenon Light
S522A=No
01 Bulb H7/55W 4 63217160780 $18.86 Shop at ECS Tuning
01 Longlife bulb 12V 55W H7 4 63217160781 $20.90 Shop at ECS Tuning
02 Head light vertical aim control 2 63117207574 Shop at ECS Tuning
03 Covering cap high beam, right VALEO 1 63117159556 $10.53 Shop at ECS Tuning
03 Covering cap high beam, left VALEO 1 63117159563 $10.53 Shop at ECS Tuning
03 Covering cap high beam, right ZKW 2 63117159565 $10.82 Shop at ECS Tuning
03 Covering cap high beam, left ZKW 2 63117159566 $10.82 Shop at ECS Tuning
04 Lamp cover low beam VALEO 2 63117159564 $7.75 Shop at ECS Tuning
04 Headlight cover 2 63127681410 $12.55 Shop at ECS Tuning
05 Bulb yellow PY21W/12V/21W 2 63217160791 $5.58 Shop at ECS Tuning
05 Bulb silver 12V 21W 2 63217160897 $19.40 Shop at ECS Tuning
06 Bulb socket, turn indicator 2 63117159570 $12.80 Shop at ECS Tuning
06 Bulb socket, turn indicator VALEO 2 63117159571 $12.80 Shop at ECS Tuning
07 Torx bolt ISA M6X18 SW 4 07146959923 $0.55 Shop at ECS Tuning
08 Clip nut M6 2 41357060601 $0.70 Shop at ECS Tuning
09 Longlife bulb 5W 2 63217160797 $1.96 Shop at ECS Tuning
10 Adjusting element, headlight ZKW X 2 63117162083 $7.53 Shop at ECS Tuning
10 Adjusting element, headlight VALEO X 2 63117168485 $7.53 Shop at ECS Tuning
10 Adjusting element, headlight VALEO Y 2 63117168486 $7.53 Shop at ECS Tuning
10 Adjusting element, headlight ZKW Y 2 63117171086 $7.53 Shop at ECS Tuning
11 Repair clip, ZKW, interior left 1 63117175205 $37.30 Shop at ECS Tuning
11 Repair clip, ZKW, interior right 1 63117175206 $37.30 Shop at ECS Tuning
11 Repair clip, ZKW, exterior left 1 63117175207 $37.30 Shop at ECS Tuning
11 Repair clip, ZKW, exterior right 1 63117175208 $37.30 Shop at ECS Tuning
11 Repair clip, Valeo, interior left 1 63117175227 $37.30 Shop at ECS Tuning
11 Repair clip, Valeo, interior right 1 63117175228 $37.30 Shop at ECS Tuning
11 Repair clip, Valeo, exterior left 1 63117175229 $37.30 Shop at ECS Tuning
11 Repair clip, Valeo, exterior right 1 63117175230 $37.30 Shop at ECS Tuning
