Single components f headlight Xenon/ALC for BMW 3 Series E90 320d (2007)
This Single components f headlight Xenon/ALC technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Xenon Light |
S522A=Yes |
||||||||
| 01 | Bulb Xenon light with ignition element | D1 12V 35W | 2 | 63217217509 | $212.43 | Shop at ECS Tuning | ||||
| 02 | Longlife bulb | 12V 55W H7 | 2 | 63217160781 | $20.90 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive Headlights |
S524A=Yes |
|||||||||
| 03 | Electronics box ALC uncoded | 2 | 63127189312 | $147.35 | Shop at ECS Tuning | |||||
| 04 | Head light vertical aim control | 2 | 63117207574 | Shop at ECS Tuning | ||||||
| 05 | Bulb socket, turn indicator | 2 | 63117159570 | $12.80 | Shop at ECS Tuning | |||||
| 06 | Bulb silver | 12V 21W | 2 | 63217160897 | $19.40 | Shop at ECS Tuning | ||||

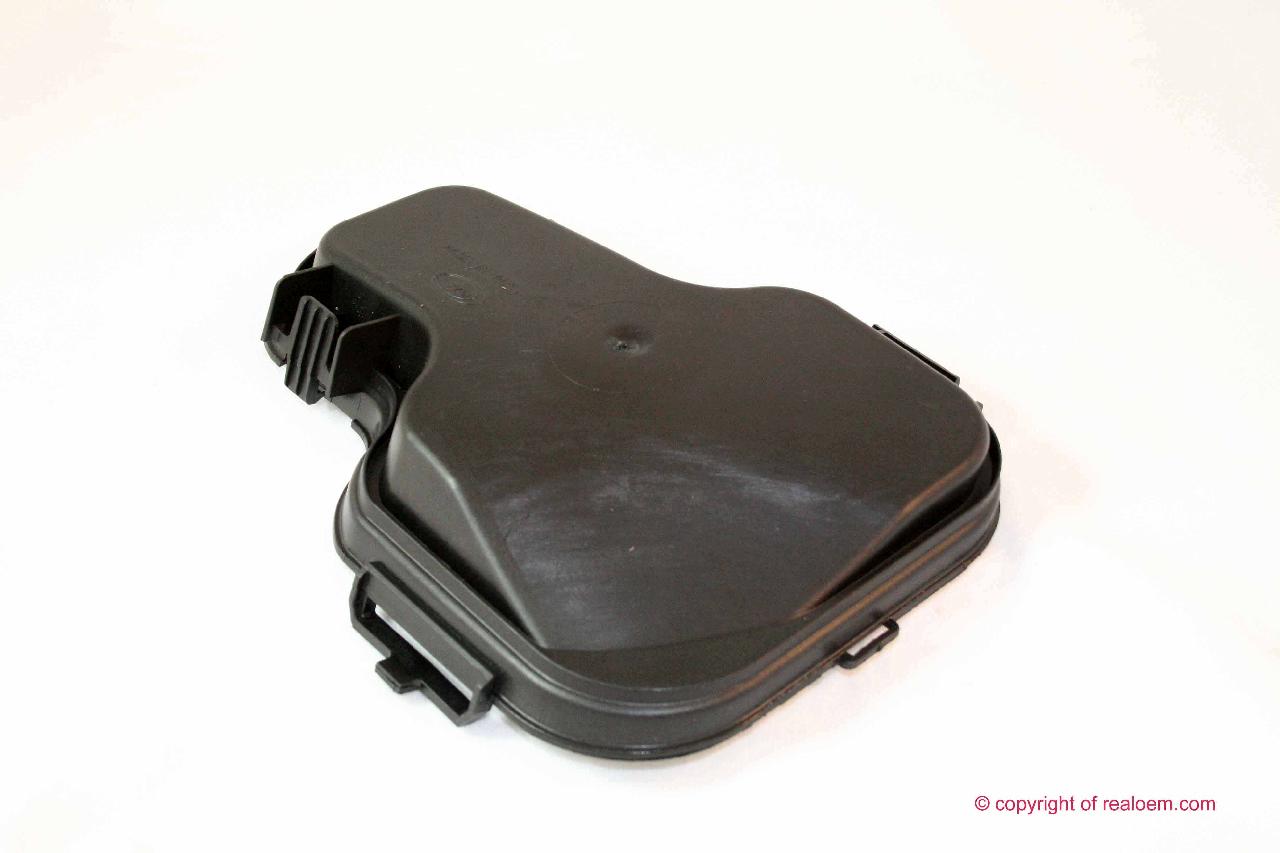

| 07 | Covering cap, Xenon headlight, left | 1 | 63117159568 | $19.10 | Shop at ECS Tuning | |||||
| 07 | Covering cap, Xenon headlight, right | 1 | 63117159569 | $19.10 | Shop at ECS Tuning | |||||
| 08 | Control unit xenon light | 2 | 63126948180 | $413.73 | Shop at ECS Tuning | |||||
| 09 | Lighting unit, light rings | ZKW | 2 | 63117161444 | $39.47 | Shop at ECS Tuning | ||||
| 10 | Stick-on label xenon-light | 2 | 71237248266 | Shop at ECS Tuning | ||||||
| 11 | Clip nut | M6 | 2 | 41357060601 | $0.70 | Shop at ECS Tuning | ||||
| 12 | Torx bolt | ISA M6X18 SW | 4 | 07146959923 | $0.55 | Shop at ECS Tuning | ||||
| 13 | Adjusting element, headlight | ZKW X | 2 | 63117162083 | $7.53 | Shop at ECS Tuning | ||||
| 14 | Adjusting element, headlight | ZKW Y | 2 | 63117171086 | $7.53 | Shop at ECS Tuning | ||||
| 15 | Connection cable, Xenon | ZKW | 2 | 63117175037 | $23.60 | Shop at ECS Tuning | ||||
| 16 | Repair clip, ZKW, interior left | 1 | 63117175205 | $37.30 | Shop at ECS Tuning | |||||
| 16 | Repair clip, ZKW, interior right | 1 | 63117175206 | $37.30 | Shop at ECS Tuning | |||||
| 16 | Repair clip, ZKW, exterior left | 1 | 63117175207 | $37.30 | Shop at ECS Tuning | |||||
| 16 | Repair clip, ZKW, exterior right | 1 | 63117175208 | $37.30 | Shop at ECS Tuning | |||||
