Headlight, electronic parts, Xenon light for BMW 7 Series E66 730Ld (2008)

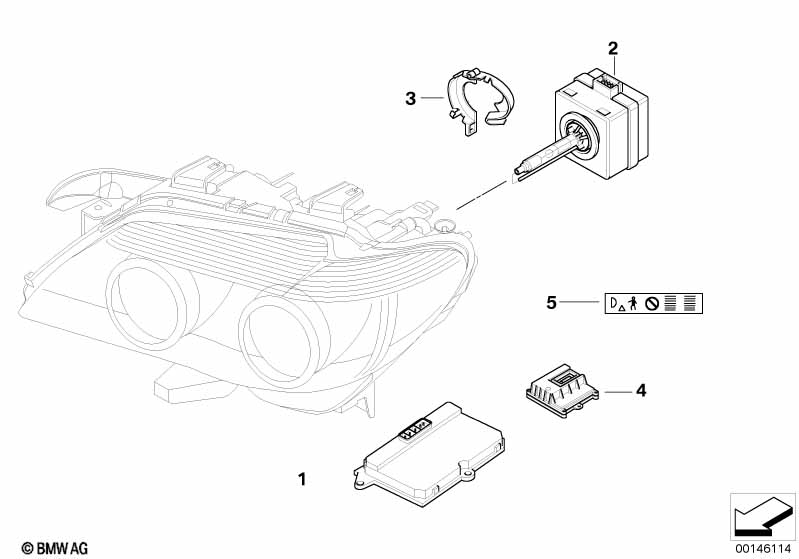

This Headlight, electronic parts, Xenon light technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit xenon light | 2 | 03/2005 | 63126937223 | $413.73 | Shop at ECS Tuning | ||||
| 02 | Bulb Xenon light with ignition element | D1 12V 35W | 2 | 03/2005 | 63217217509 | $212.43 | Shop at ECS Tuning | |||
| 03 | Lamp holder for Xenon lamp | 2 | 03/2005 | 63117162087 | $7.17 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive Headlights |
S524A=Yes |
|||||||||
| 04 | Electronics box ALC uncoded | 2 | 03/2005 | 63127189312 | $147.35 | Shop at ECS Tuning | ||||
| 05 | Stick-on label xenon-light | 2 | 03/2005 | 71237248266 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 05 | Stick-on label xenon-light | 2 | 71237248266 | Shop at ECS Tuning | ||||||
