Various interior lights for BMW 3 Series E91 LCI 320d (2012)

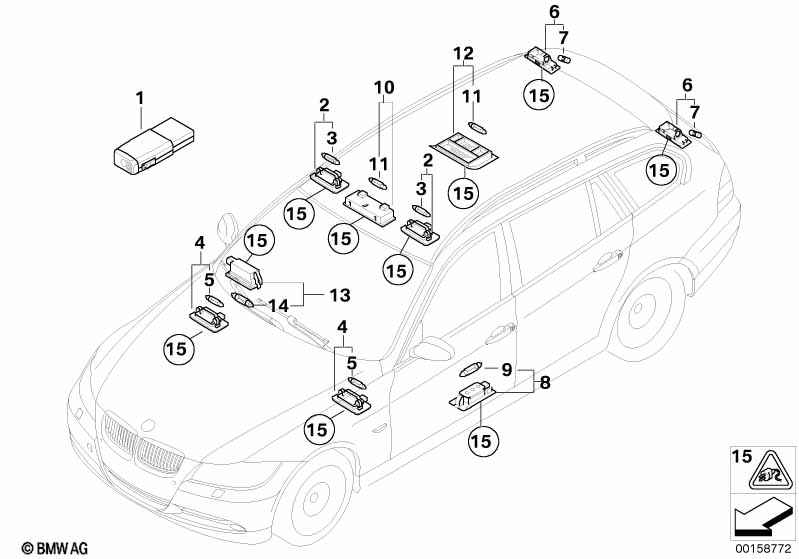

This Various interior lights technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.

Various interior lights
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Flashlight, LED 1 09/2007 63319148677 $14.10 ENDED, +core Shop at ECS Tuning
02 Mirror lamp GRAU 2 63316962011 $10.07 Shop at ECS Tuning
02 Mirror lamp SCHWARZ 2 63316962013 $10.07 Shop at ECS Tuning
02 Mirror lamp SAVANNABEIGE 2 63316962014 $10.07 Shop at ECS Tuning
03 Bulb 12V 10W 2 63217160912 $1.96 Shop at ECS Tuning
04 Interior light 5W TRÜB 2 63316972605 $11.92 Shop at ECS Tuning
05 Longlife bulb 5W 2 63217160797 $1.96 Shop at ECS Tuning
06 Interior light 5W TRÜB 2 63316972605 $11.92 Shop at ECS Tuning
07 Bulb 12V 10W 2 63217160912 $1.96 Shop at ECS Tuning
For vehicles with
Light package
S563A=Yes
08 Interior light 5W TRÜB 2 63316972605 $11.92 Shop at ECS Tuning
09 Bulb W3W 2 07119905358 $1.96 Shop at ECS Tuning
10 Interior light, front 1 61316924675 $74.58 Shop at ECS Tuning
11 Bulb 12V 6W XENON X 63217160908 $7.94 Shop at ECS Tuning
For vehicles with
Electric panoramic roof
S402A=Yes
12 Interior reading light, rear 2 63319201506 $91.17 Shop at ECS Tuning
For vehicles with
Alarm system
and
Light package
S302A=Yes

S563A=No
12 Interior light, rear HIMMELGRAU 1 61319201637 $74.58 Shop at ECS Tuning
12 Interior light, rear BEIGE 1 61319201638 $74.58 +core Shop at ECS Tuning
12 Interior light, rear SCHWARZ 1 61319201639 $74.58 +core Shop at ECS Tuning
For vehicles with
Alarm system
and
Light package
S302A=No

S563A=Yes
12 Interior reading light, rear GRAU 1 61319201632 $94.15 Shop at ECS Tuning
12 Interior reading light, rear BEIGE 1 61319201633 $94.15 +core Shop at ECS Tuning
12 Interior reading light, rear SCHWARZ 1 61319201634 $94.15 +core Shop at ECS Tuning
For vehicles with
Alarm system
or
Light package
S302A=No

S563A=No
12 Interior light, rear GRAU 1 61319201629 $74.58 Shop at ECS Tuning
12 Interior light, rear BEIGE 1 61319201630 $74.58 +core Shop at ECS Tuning
12 Interior light, rear SCHWARZ 1 61319201631 $74.58 +core Shop at ECS Tuning
For vehicles with
Alarm system
and
Light package
S302A=Yes

S563A=Yes
12 Interior reading light, rear GRAU 1 61319201643 $94.15 Shop at ECS Tuning
12 Interior reading light, rear SAVANNABEIGE 1 61319201644 $94.15 +core Shop at ECS Tuning
12 Interior reading light, rear SCHWARZ 1 61319201645 $94.15 Shop at ECS Tuning
13 Glove box light 1 63316962045 $8.17 Shop at ECS Tuning
14 Bulb 12V 5W 1 63217160805 $1.58 Shop at ECS Tuning
Suitable for Pos. 8
15 Rep. kit for socket housing 2 POL. 2 61132360043 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
