Headlight for BMW 3 Series E92 325i (2010)

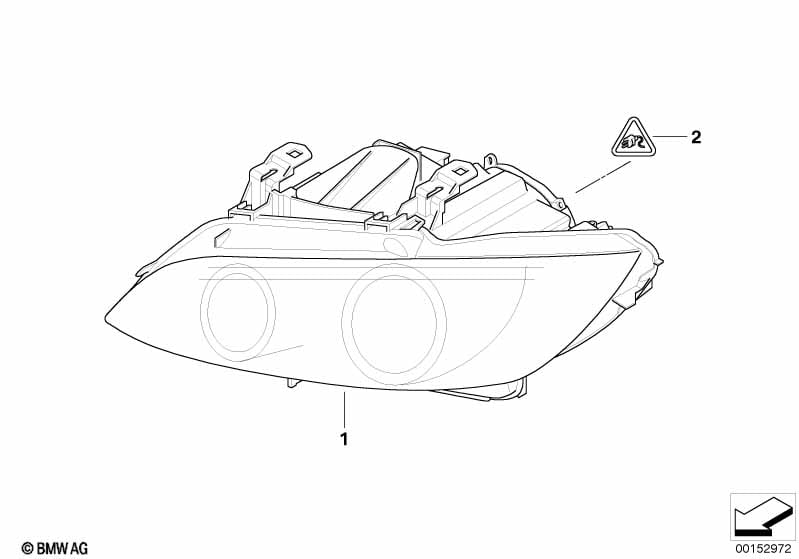

This Headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Headlights xenon/AHL without xenon control module, xenon lamp and control module cornering light. |
|||||||||
| 01 | Bi-xenon headlight, left | 1 | 63117182507 | Shop at ECS Tuning | ||||||
| 01 | Bi-xenon headlight, right | 1 | 63117182508 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive Headlights |
S524A=Yes |
|||||||||
| 01 | AHL-xenon headlight, left | 1 | 63117182513 | Shop at ECS Tuning | ||||||
| 01 | AHL-xenon headlight, right | 1 | 63117182514 | Shop at ECS Tuning | ||||||
| 02 | Rep. kit for socket housing | 12 POL. | 1 | 61132359991 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
