Various lamps for BMW 3 Series E93 320i (2010)

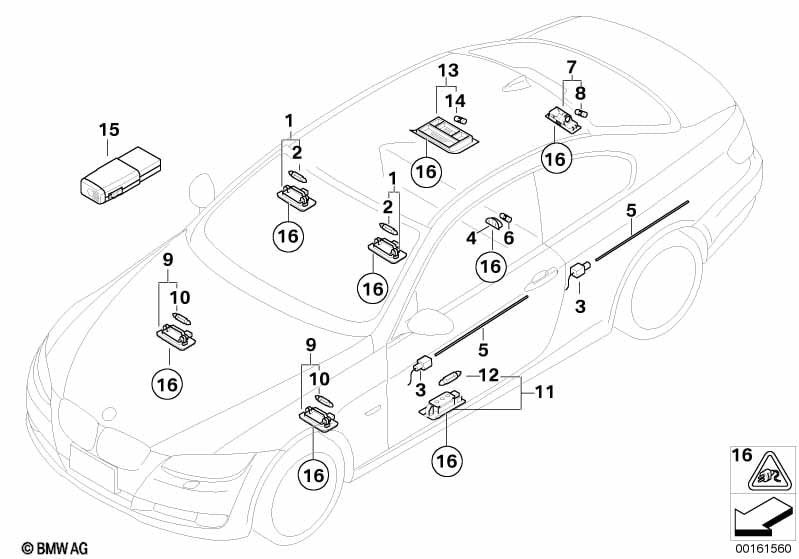

This Various lamps technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mirror lamp | 2 | 63316966491 | $14.33 | Shop at ECS Tuning | |||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 03 | LED door/side panel lighting | 4 | 63319122419 | $10.68 | Shop at ECS Tuning | |||||
| 04 | Lamp, door entrance rear | SCHWARZ | 2 | 63316976722 | $10.03 | Shop at ECS Tuning | ||||
| 04 | Lamp, door entrance rear | GRAU 60 | 2 | 63316976723 | $10.03 | Shop at ECS Tuning | ||||
| 04 | Lamp, door entrance rear | CREAMBEIGE | 2 | 63316976724 | $10.03 | Shop at ECS Tuning | ||||
| 05 | Optical conduct., door panel, left front | 1 | 63316958347 | $6.60 | Shop at ECS Tuning | |||||
| 05 | Optical conductor, door panel, ri. front | 1 | 63316958348 | $6.60 | Shop at ECS Tuning | |||||
| 05 | FO conductor side trim panel rear L | 1 | 63316958351 | $11.00 | Shop at ECS Tuning | |||||
| 05 | FO conductor side trim panel rear R | 1 | 63316958352 | $11.00 | Shop at ECS Tuning | |||||
| Luggage compartment lighting | ||||||||||
| 07 | Interior light | 10W | 2 | 03/2012 | 63316962039 | $11.92 | Shop at ECS Tuning | |||
| 08 | Bulb | 12V 10W | 2 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 15 | Flashlight, LED | 1 | 09/2007 | 63319148677 | $14.10 | ENDED, +core | Shop at ECS Tuning | |||
| 16 | Rep. kit for socket housing | 2 POL. | X | 61132360043 | Shop at ECS Tuning | |||||
| only applies to Interior reading light, rear |
||||||||||
| 16 | Universal socket housing uncoded | 8 POL. | X | 61136954526 | $3.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Covering cap | 8 POL. | 1 | 61138373966 | $0.52 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
