Turn signal/side marker light for BMW MINI R56 LCI Cooper

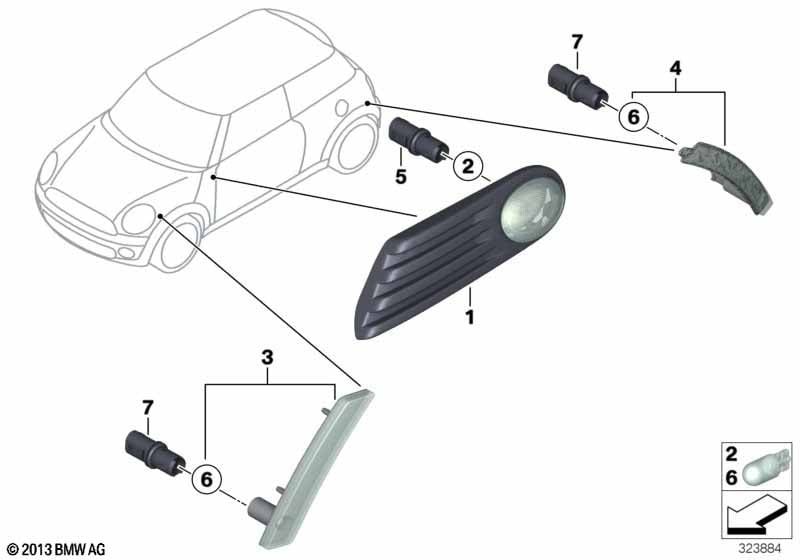

This Turn signal/side marker light technical drawing provides a detailed breakdown of the assembly for the MINI R56 LCI Cooper. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 01 | Addit. turn indicator lamp, right white | 1 | 08/2010 | 63137260204 | Shop at ECS Tuning | |||||
| For vehicles with MINI Baker Street |
P7HTA=Yes |
|||||||||
| 01 | Additional turn indicator lamp, left | 1 | 63137310499 | Shop at ECS Tuning | ||||||
| 01 | Additional turn indicator lamp, right | 1 | 63137310500 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours hood stripes 'Soda' |
S3BAA=Yes |
|||||||||
| 01 | Additional turn indicator lamp, left | 1 | 63137292765 | Shop at ECS Tuning | ||||||
| 01 | Additional turn indicator lamp, right | 1 | 63137292766 | Shop at ECS Tuning | ||||||
| For vehicles with MINI Bayswater |
P7HUA=Yes |
|||||||||
| 01 | Additional turn indicator lamp, left | 1 | 63137310507 | ENDED | Shop at ECS Tuning | |||||
| 01 | Additional turn indicator lamp, right | 1 | 63137310508 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours hood stripe Soda schwarz and MINI Yours |
S3BKA=Yes S3BYA=Yes |
|||||||||
| 01 | Additional turn indicator lamp, left | YOURS SCHWARZ | 1 | 63137292769 | Shop at ECS Tuning | |||||
| 01 | Additional turn indicator lamp, right | YOURS SCHWARZ | 1 | 63137292770 | Shop at ECS Tuning | |||||
| For vehicles with World Championship 50 and White direction indicator lights |
P7HKA=Yes S785A=Yes |
|||||||||
| 01 | Additional turn indicator lamp, left | 1 | 63137267891 | Shop at ECS Tuning | ||||||
| 01 | Additional turn indicator lamp, right | 1 | 63137267892 | Shop at ECS Tuning | ||||||
| For vehicles with MINI Highgate and MINI Yours and White direction indicator lights |
P7HVA=No S3BYA=No S785A=No |
|||||||||
| 01 | Auxiliary flasher, yellow, right | 1 | 08/2010 | 63137260202 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours and White direction indicator lights and Aerodynamics package |
S3BYA=No S785A=Yes S7ARA=Yes |
|||||||||
| 01 | Additional turn indicator lamp, left | 1 | 08/2010 | 63137268883 | Shop at ECS Tuning | |||||
| 01 | Additional turn indicator lamp, right | 1 | 08/2010 | 63137268884 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours and White direction indicator lights and Aerodynamics package |
S3BYA=No S785A=No S7ARA=Yes |
|||||||||
| 01 | Additional turn indicator lamp, left | 1 | 08/2010 | 63137268883 | Shop at ECS Tuning | |||||
| 01 | Additional turn indicator lamp, right | 1 | 08/2010 | 63137268884 | Shop at ECS Tuning | |||||
| For vehicles with MINI Baker Street and MINI Bayswater and MINI Yours and White direction indicator lights |
P7HTA=No P7HUA=No S3BYA=No S785A=Yes |
|||||||||
| 01 | Addit. turn indicator lamp, left white | 1 | 08/2010 | 63137260203 | Shop at ECS Tuning | |||||
| 01 | Addit. turn indicator lamp, right white | 1 | 08/2010 | 63137260204 | Shop at ECS Tuning | |||||
| For vehicles with MINI Baker Street and MINI Bayswater and MINI Yours and White direction indicator lights |
P7HTA=No P7HUA=No S3BYA=No S785A=No |
|||||||||
| 01 | Auxiliary flasher, yellow, left | 1 | 08/2010 | 63137260201 | Shop at ECS Tuning | |||||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 02 | Bulb yellow | 12V 5W | 6 | 63217160798 | $2.96 | Shop at ECS Tuning | ||||
| For vehicles with White direction indicator lights |
S785A=No |
|||||||||
| 02 | Longlife bulb | 5W | 6 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 03 | Side marker light, front, left | 1 | 63132751331 | $23.46 | Shop at ECS Tuning | |||||
| 03 | Side marker light, front, right | 1 | 63132751332 | $23.46 | Shop at ECS Tuning | |||||
| 04 | Side marker light, rear, left | 1 | 63132751333 | $23.46 | Shop at ECS Tuning | |||||
| 04 | Side marker light, rear, right | 1 | 63132751334 | $23.46 | Shop at ECS Tuning | |||||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 05 | Bulb socket | 6 | 63137298582 | Shop at ECS Tuning | ||||||
| For vehicles with White direction indicator lights |
S785A=No |
|||||||||
| 05 | Bulb socket | 6 | 63138360205 | $7.32 | Shop at ECS Tuning | |||||
| 06 | Bulb | W3W | 4 | 07119905358 | $1.96 | Shop at ECS Tuning | ||||
| 07 | Bulb socket | 4 | 63138382104 | $9.05 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
