Individual parts for halogen headlamp for BMW 5 Series E60 LCI 523i (2008)

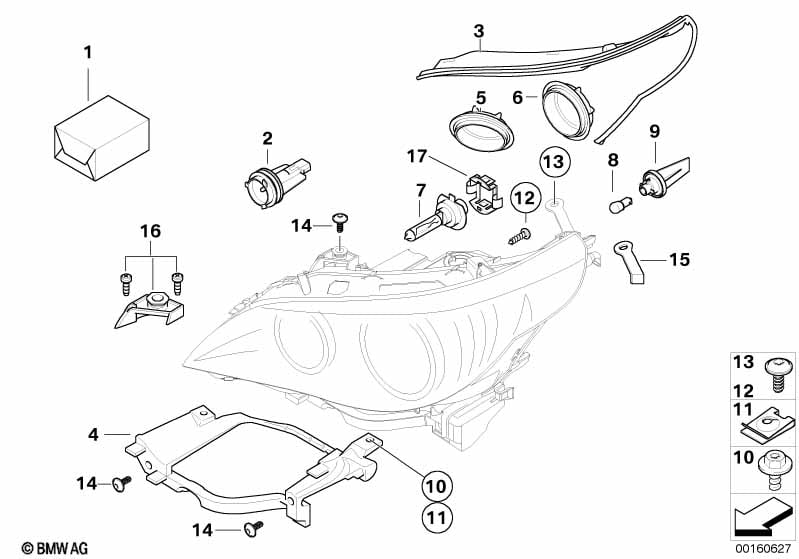

This Individual parts for halogen headlamp technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Xenon Light and Adaptive Headlights |
S522A=No S524A=No |
||||||||
| 01 | Repair kit headlight | 1 | 03/2007 | 63116933241 | $7.60 | Shop at ECS Tuning | ||||
| 02 | Bulb socket with bulb f parking light | 2 | 03/2007 | 63127187952 | $16.08 | Shop at ECS Tuning | ||||
| 03 | Gasket, headlight, left | 1 | 03/2007 | 63126934511 | $14.29 | Shop at ECS Tuning | ||||
| 03 | Gasket, headlight, right | 1 | 03/2007 | 63126934512 | $14.29 | Shop at ECS Tuning | ||||
| 04 | Bracket headlight left | 1 | 03/2007 | 63126936089 | $14.30 | ENDED | Shop at ECS Tuning | |||
| 04 | Bracket headlight right | 1 | 03/2007 | 63126936090 | $14.30 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover, high beam/daytime driving light | 2 | 03/2007 | 63127187274 | $7.93 | Shop at ECS Tuning | ||||
| 06 | Lamp cover low beam | 2 | 03/2007 | 63127187275 | $7.93 | Shop at ECS Tuning | ||||
| 07 | Longlife bulb | 12V 55W H7 | 4 | 03/2007 | 63217160781 | $20.90 | Shop at ECS Tuning | |||
| 08 | Bulb silver | 12V 21W | 2 | 03/2007 | 63217160897 | $19.40 | Shop at ECS Tuning | |||
| 09 | Bulb socket, turn indicator | 2 | 03/2007 | 63126916102 | $8.58 | Shop at ECS Tuning | ||||
| 10 | Hex head screw | ST6,3X13-F-Z1 | 4 | 03/2007 | 07119905807 | $0.56 | Shop at ECS Tuning | |||
| 11 | Body nut | ST6,3-2-ZNS3 | 4 | 03/2007 | 07129904232 | $0.16 | Shop at ECS Tuning | |||
| 12 | Fillister head screw with collar | M4X14 | 8 | 03/2007 | 46637659479 | $1.20 | Shop at ECS Tuning | |||
| 13 | Oval-head screw with washer | ISA M6X21 | 4 | 03/2007 | 07147263759 | Shop at ECS Tuning | ||||
| 14 | Fillister head screw | ISA M6X28 | 6 | 03/2007 | 63127068171 | $0.72 | Shop at ECS Tuning | |||
| 15 | Bracket headlight left | 1 | 03/2007 | 63126949633 | $4.10 | Shop at ECS Tuning | ||||
| 15 | Bracket headlight right | 1 | 03/2007 | 63126949634 | $4.10 | Shop at ECS Tuning | ||||
| 16 | Repair kit headlight | 1 | 03/2007 | 63126941478 | $65.80 | Shop at ECS Tuning | ||||
| 17 | Retaining spring for bulb H7 | 1 | 03/2007 | 63117178713 | $2.50 | Shop at ECS Tuning | ||||
