Single components f headlight Xenon/ALC for BMW 5 Series E60 LCI 523i (2009)

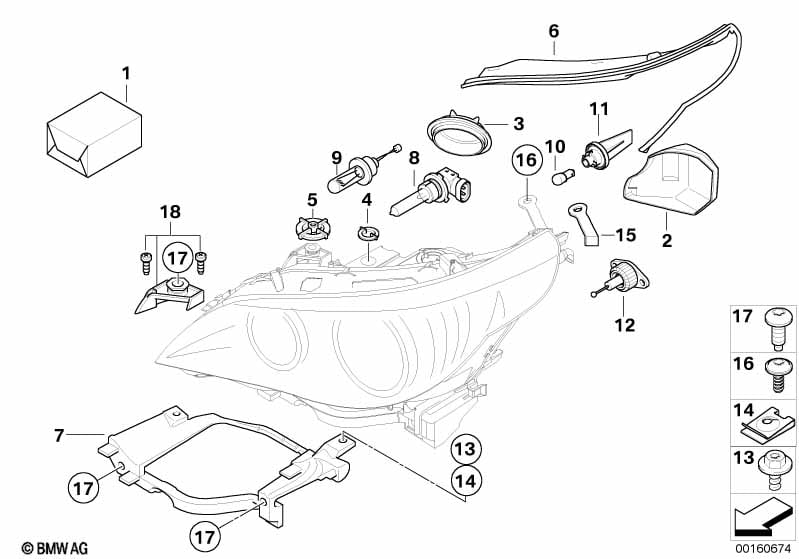

This Single components f headlight Xenon/ALC technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Xenon Light or Adaptive Headlights |
S522A=Yes S524A=Yes |
||||||||
| 01 | Repair kit headlight | 1 | 03/2007 | 63116933241 | $7.60 | Shop at ECS Tuning | ||||
| 02 | Covering cap, low beam, left | 1 | 03/2007 | 63127187271 | $9.55 | Shop at ECS Tuning | ||||
| 02 | Covering cap, low beam, right | 1 | 03/2007 | 63127187272 | $9.55 | Shop at ECS Tuning | ||||
| 03 | Cover, high beam/daytime driving light | 2 | 03/2007 | 63127187274 | $7.93 | Shop at ECS Tuning | ||||
| 04 | Headlight cover | 2 | 03/2007 | 63128375448 | $14.47 | Shop at ECS Tuning | ||||
| 05 | Cover for cornering light | 2 | 03/2007 | 63127187273 | $7.93 | Shop at ECS Tuning | ||||
| 06 | Gasket, headlight, left | 1 | 03/2007 | 63127187269 | $14.29 | Shop at ECS Tuning | ||||
| 06 | Gasket, headlight, right | 1 | 03/2007 | 63127187270 | $14.29 | Shop at ECS Tuning | ||||
| 07 | Bracket headlight left | 1 | 03/2007 | 63126936089 | $14.30 | ENDED | Shop at ECS Tuning | |||
| 07 | Bracket headlight right | 1 | 03/2007 | 63126936090 | $14.30 | ENDED | Shop at ECS Tuning | |||
| Only suitable for daytime driving lights | ||||||||||
| 08 | Bulb | H8 12V 35W | 2 | 03/2007 | 07119906503 | Shop at ECS Tuning | ||||
| 09 | Bulb | 12V 55W H3 | 2 | 03/2007 | 63217160779 | $21.84 | Shop at ECS Tuning | |||
| 10 | Bulb silver | 12V 21W | 2 | 03/2007 | 63217160897 | $19.40 | Shop at ECS Tuning | |||
| 10 | Bulb yellow | PY21W/12V/21W | 2 | 03/2007 | 63217160791 | $5.58 | Shop at ECS Tuning | |||
| 11 | Bulb socket, turn indicator | 2 | 03/2007 | 63126916102 | $8.58 | Shop at ECS Tuning | ||||
| 12 | Head light vertical aim control | 2 | 03/2007 | 63117207574 | Shop at ECS Tuning | |||||
| 13 | Hex head screw | ST6,3X13-F-Z1 | 4 | 03/2007 | 07119905807 | $0.56 | Shop at ECS Tuning | |||
| 14 | Body nut | ST6,3-2-ZNS3 | 4 | 03/2007 | 07129904232 | $0.16 | Shop at ECS Tuning | |||
| 15 | Bracket headlight left | 1 | 03/2007 | 63126949633 | $4.10 | Shop at ECS Tuning | ||||
| 15 | Bracket headlight right | 1 | 03/2007 | 63126949634 | $4.10 | Shop at ECS Tuning | ||||
| 16 | Fillister head screw | ISA M6X28 | 2 | 03/2007 | 63127068171 | $0.72 | Shop at ECS Tuning | |||
| 17 | Oval-head screw with washer | ISA M6X21 | 6 | 03/2007 | 07147263759 | Shop at ECS Tuning | ||||
| 18 | Repair kit headlight | 1 | 03/2007 | 63126941478 | $65.80 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
