Rear light in the side panel for BMW 5 Series E60 LCI 523i (2008)

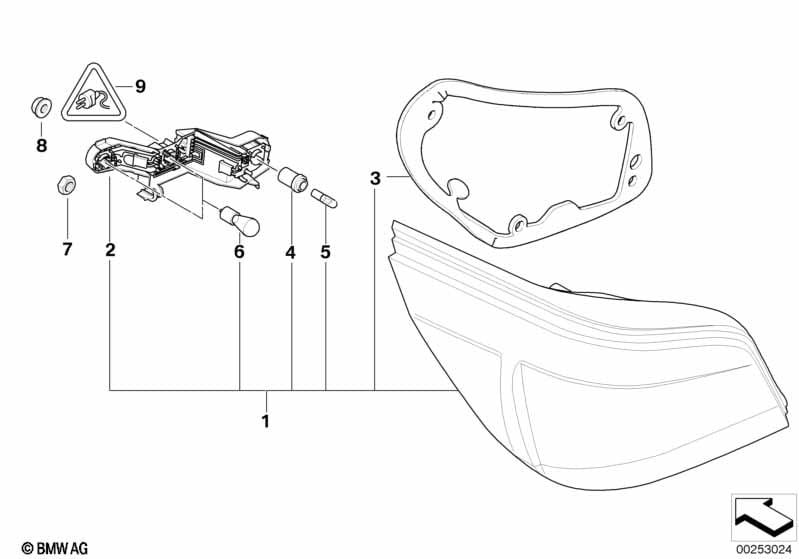

This Rear light in the side panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear light, white turn indicator | 1 | 03/2007 | 63217361591 | Shop at ECS Tuning | |||||
| 01 | Right rear light, white turn indicator | 1 | 03/2007 | 63217361592 | Shop at ECS Tuning | |||||
| 02 | Left bulb carrier f white turn indicator | 1 | 03/2007 | 63217361881 | Shop at ECS Tuning | |||||
| 02 | Rght bulb carrier f white turn indicator | 1 | 03/2007 | 63217361882 | Shop at ECS Tuning | |||||
| 03 | Gasket, rear light, left | 1 | 03/2007 | 63217207499 | Shop at ECS Tuning | |||||
| 03 | Gasket, rear light, right | 1 | 03/2007 | 63217207500 | Shop at ECS Tuning | |||||
| 04 | Bulb socket | W16W | 1 | 03/2007 | 63216916471 | $7.05 | Shop at ECS Tuning | |||
| 05 | Longlife bulb | 12V 16W | 2 | 03/2007 | 63217160935 | $6.42 | Shop at ECS Tuning | |||
| 06 | Longlife bulb | P21W/12V/21W | 6 | 03/2007 | 63217160790 | $2.38 | Shop at ECS Tuning | |||
| 07 | Hex nut with plate | M5 | 6 | 03/2007 | 63259128043 | $0.72 | Shop at ECS Tuning | |||
| 08 | Hex nut | M5 | 2 | 03/2007 | 07129902974 | $0.88 | Shop at ECS Tuning | |||

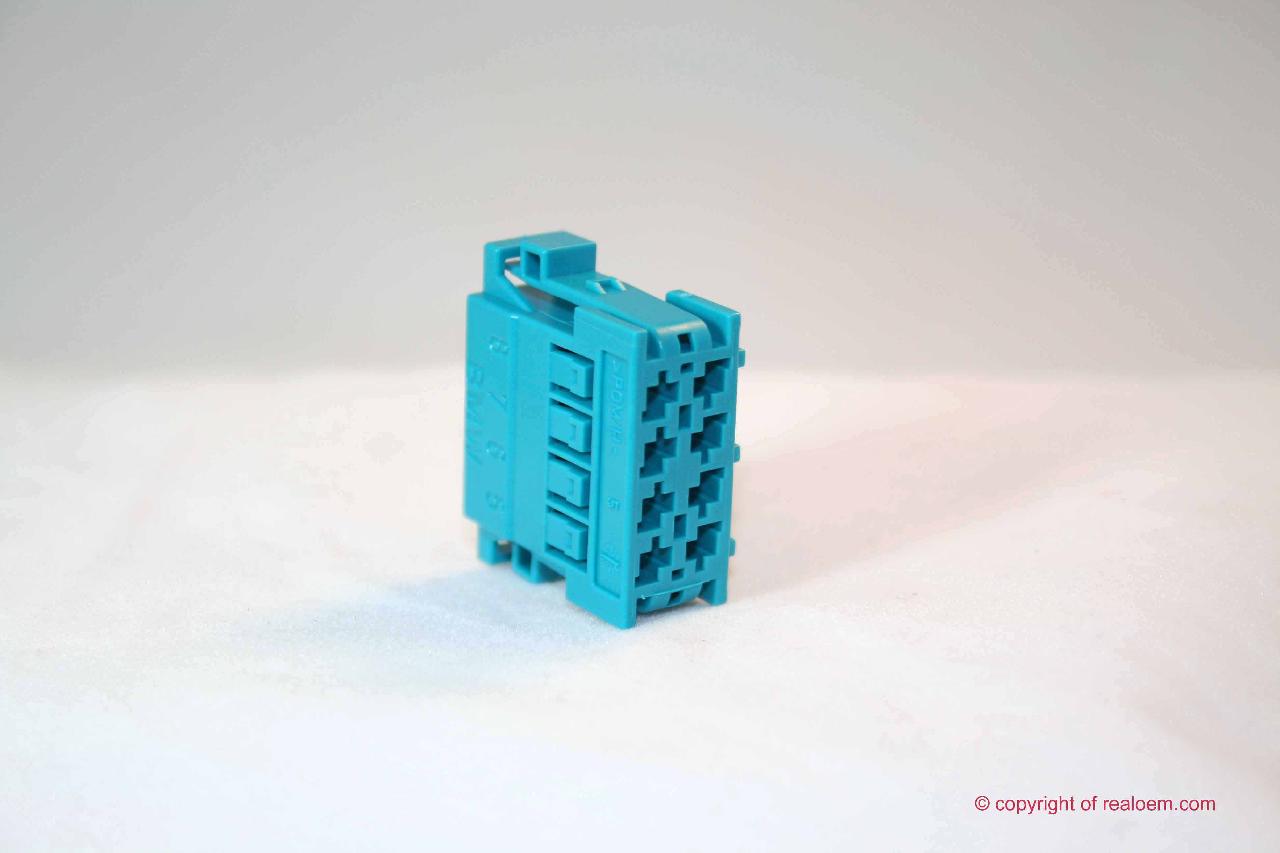

| 09 | Universal socket housing uncoded | 8 POL. | 2 | 03/2007 | 12527505477 | $1.77 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Socket contact SLK 2,8 | 1,0-2,5 MM²/AG | 8 | 03/2007 | 12527502933 | $0.50 | Shop at ECS Tuning | |||
