Rear light for BMW 5 Series E61 LCI 520d (2007)

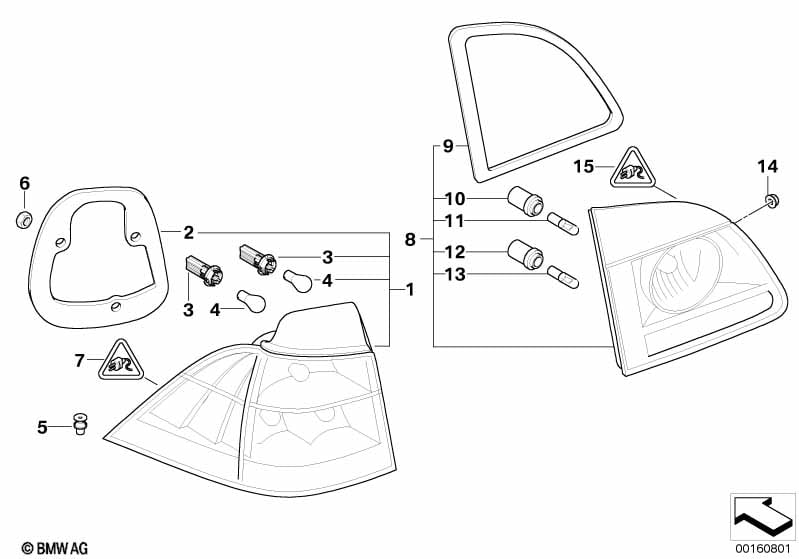

This Rear light technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear light in the side panel, white left | 1 | 63217177693 | Shop at ECS Tuning | ||||||
| 01 | Rear light in the side panel,white right | 1 | 63217177694 | Shop at ECS Tuning | ||||||
| 02 | Seal, rear light, side panel | 2 | 63217186767 | $6.39 | Shop at ECS Tuning | |||||
| 03 | Bulb socket | P21W | 4 | 63218355883 | $7.32 | Shop at ECS Tuning | ||||
| 04 | Longlife bulb | P21W/12V/21W | 4 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 05 | Clip, rear light | 2 | 07147143826 | $0.47 | Shop at ECS Tuning | |||||
| 06 | Hex nut with plate | M5 | 6 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 07 | Universal MPQ socket housing uncoded | 6 POL. | 1 | 61136984758 | $3.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | 6 | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| 08 | Rear light in trunk lid, left | 1 | 63217177697 | $184.68 | Shop at ECS Tuning | |||||
| 08 | Rear light in trunk lid, right | 1 | 63217177698 | $184.68 | Shop at ECS Tuning | |||||
| 09 | Gasket, rear light, trunk lid, left | 1 | 63217186765 | $5.98 | Shop at ECS Tuning | |||||
| 09 | Gasket, rear light, trunk lid, right | 1 | 63217186766 | $5.98 | Shop at ECS Tuning | |||||
| 10 | Bulb socket | W16W | 2 | 63216916471 | $7.05 | Shop at ECS Tuning | ||||
| 11 | Longlife bulb | 12V 16W | 2 | 63217160935 | $6.42 | Shop at ECS Tuning | ||||
| 12 | Bulb socket | H21W | 2 | 63117407330 | Shop at ECS Tuning | |||||
| 13 | Longlife bulb | 12V 21W H21W | 2 | 63217160788 | $11.70 | Shop at ECS Tuning | ||||
| 14 | Hex nut with plate | M5 | 2 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 15 | Universal socket housing uncoded | 4 POL. | 2 | 61136984750 | $5.03 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | 4 | 61138364836 | $0.35 | Shop at ECS Tuning | ||||
| 15 | Rep. kit for socket housing | 4 POL. | 2 | 61132359996 | Shop at ECS Tuning | |||||
