Reflector for BMW 5 Series E60 LCI 530d (2009)

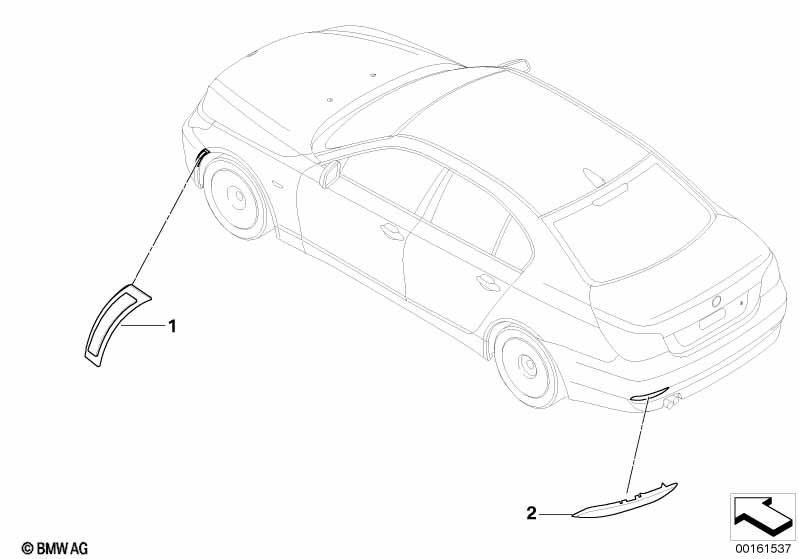

This Reflector technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Reflector left | 1 | 63147183913 | $13.17 | Shop at ECS Tuning | |||||
| 02 | Reflector right | 1 | 63147183914 | $13.17 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 530d Reflector?
- This technical diagram illustrates the Reflector within the Lighting group for the 5 Series E60 LCI 530d produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Reflector left (Part #63147183913).
- Which models use the hardware listed in this Reflector?
- The hardware and components featured in the Reflector are specific to the 5 Series E60 LCI 530d produced during 2009. These technical specifications ensure that parts like the Reflector left (63147183913) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Reflector assembly?
- Each item in the Reflector corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 530d, you can identify the Reflector left by locating its position on the schematic, which then links to the official BMW part number 63147183913 for the Lighting section.
