Various lamps for BMW 5 Series E61 LCI M5 (2010)

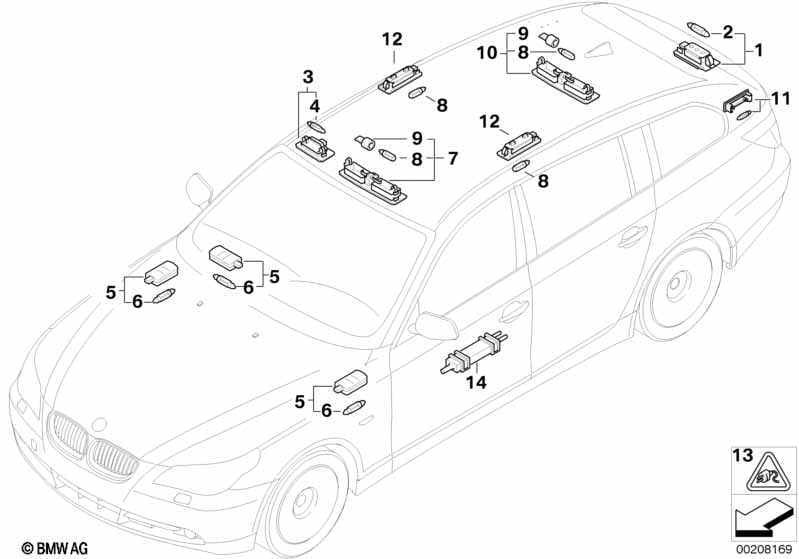

This Various lamps technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Registration plate light | 2 | 63267165646 | $7.92 | Shop at ECS Tuning | |||||
| 02 | Bulb | 12V 5W | 2 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 03 | Mirror lamp | GRAU | 2 | 63316962011 | $10.07 | Shop at ECS Tuning | ||||
| 03 | Mirror lamp | BEIGE 3 | 2 | 63316962012 | $10.07 | Shop at ECS Tuning | ||||
| 03 | Mirror lamp | CREMEBEIGE | 2 | 63316962017 | $10.07 | Shop at ECS Tuning | ||||
| 03 | Mirror lamp | SCHWARZ | 2 | 63316962013 | $10.07 | Shop at ECS Tuning | ||||
| 04 | Bulb | 12V 10W | 2 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 05 | Interior light | 3 | 63316962040 | $10.07 | Shop at ECS Tuning | |||||
| 06 | Bulb | 12V 5W | 3 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 07 | Interior reading light front | 1 | 63316962058 | $87.23 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bulb | 12V 6W XENON | 6 | 63217160908 | $7.94 | Shop at ECS Tuning | ||||
| 09 | Bulb socket | 6 | 63258389736 | $2.42 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof |
S402A=No |
|||||||||
| 10 | Interior reading light, rear | 1 | 63316962057 | $81.92 | ENDED | Shop at ECS Tuning | ||||
| 11 | Interior light | 2 | 63316962009 | $6.57 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof |
S402A=Yes |
|||||||||
| 12 | interior reading light rear left | 1 | 63316962007 | $81.92 | Shop at ECS Tuning | |||||
| 12 | interior reading light, rear right | 1 | 63316962008 | $81.92 | Shop at ECS Tuning | |||||
| 13 | Plug housing, yellow | 2 | 61131378419 | $1.15 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 ELA with cable | 1,0-2,5 MM² | X | 61130007571 | $2.65 | Shop at ECS Tuning | ||||
| 13 | LED door/side panel lighting | 4 | 63319159377 | ENDED | Shop at ECS Tuning | |||||
