Single parts, xenon headlight for BMW 6 Series E63 LCI 650i (2010)

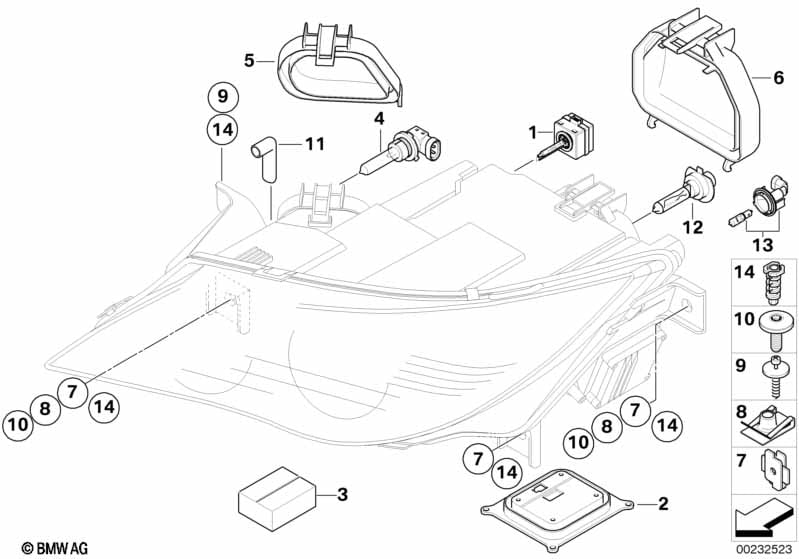

This Single parts, xenon headlight technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bulb Xenon light with ignition element | D1 12V 35W | 2 | 63217217509 | $212.43 | Shop at ECS Tuning | ||||
| 02 | Control unit xenon light | 2 | 63117182520 | $449.90 | Shop at ECS Tuning | |||||
| Includes control unit, cover and screws |
||||||||||
| 03 | Control unit, cornering light, left | 1 | 63127199361 | $130.78 | Shop at ECS Tuning | |||||
| 03 | Control unit, cornering light, right | 1 | 63127199362 | $130.78 | Shop at ECS Tuning | |||||
| 04 | Bulb | H8 12V 35W | 2 | 07119906503 | Shop at ECS Tuning | |||||
| 05 | Covering cap high beam, left | 1 | 63126943481 | $7.02 | Shop at ECS Tuning | |||||
| 05 | Covering cap high beam, right | 1 | 63126943482 | $7.02 | Shop at ECS Tuning | |||||
| 06 | Lamp cover low beam | 2 | 63126943483 | $8.22 | Shop at ECS Tuning | |||||
| 07 | Bracket headlight | 6 | 63126918594 | $2.32 | Shop at ECS Tuning | |||||
| 08 | C-clip nut | M6-ZNS3 | 6 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 09 | Hexagon screw for plastic | 6 | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
| 10 | Torx bolt | ISA M6X18 SW | 6 | 07146959923 | $0.55 | Shop at ECS Tuning | ||||
| 11 | Ventilation grommet | 2 | 63126918591 | $6.37 | Shop at ECS Tuning | |||||
| 12 | Longlife bulb | 12V 55W H7 | 2 | 63217160781 | $20.90 | Shop at ECS Tuning | ||||
| 13 | Bulb socket with bulb f parking light | 2 | 63126904048 | $33.98 | Shop at ECS Tuning | |||||
| 14 | Adjusting screw, headlight | 2 | 63121387026 | $0.52 | Shop at ECS Tuning | |||||
