Rear light for BMW 1 Series E82 135i (2010)

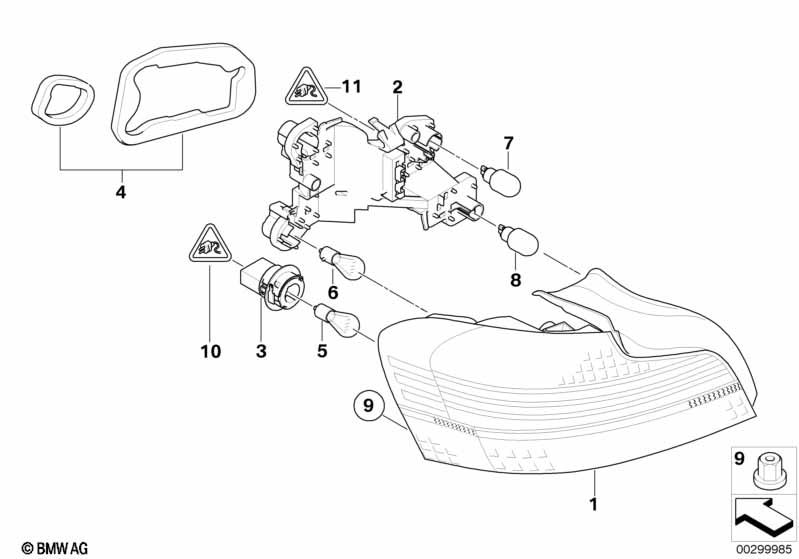

This Rear light technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tail light left | 1 | 03/2011 | 63217285641 | Shop at ECS Tuning | |||||
| 01 | Tail light right | 1 | 03/2011 | 63217285642 | Shop at ECS Tuning | |||||
| 02 | Bulb socket, left | 1 | 03/2011 | 63217164971 | $33.08 | Shop at ECS Tuning | ||||
| 02 | bulb socket, right | 1 | 03/2011 | 63217164972 | $33.08 | Shop at ECS Tuning | ||||
| 03 | Bulb socket | 2 | 03/2011 | 63217164919 | $12.12 | Shop at ECS Tuning | ||||
| 04 | Seals, left | 1 | 03/2011 | 63217303319 | Shop at ECS Tuning | |||||
| 04 | Seals, right | 1 | 03/2011 | 63217303320 | Shop at ECS Tuning | |||||
| 05 | Longlife bulb | P21W/12V/21W | 4 | 03/2011 | 63217160790 | $2.38 | Shop at ECS Tuning | |||
| 06 | Bulb yellow | PY21W/12V/21W | 2 | 03/2011 | 63217160791 | $5.58 | Shop at ECS Tuning | |||
| 06 | Bulb silver | 12V 21W | 2 | 03/2011 | 63217160897 | $19.40 | Shop at ECS Tuning | |||
| 07 | Longlife bulb | 12V 21W H21W | 2 | 03/2011 | 63217160788 | $11.70 | Shop at ECS Tuning | |||
| 08 | Longlife bulb | 12V 16W | 2 | 03/2011 | 63217160935 | $6.42 | Shop at ECS Tuning | |||
| 09 | Hex nut with plate | M5-8-ZNNIV SI | 6 | 03/2011 | 07129904381 | $0.64 | Shop at ECS Tuning | |||
| 10 | Universal MPQ socket housing uncoded | 3 POL. | 2 | 03/2011 | 61136984742 | $3.17 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Socket contact ELO-Power 2,8x0,63 | 2,5-4,0 MM | X | 03/2011 | 61136913612 | $0.50 | Shop at ECS Tuning | |||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | X | 03/2011 | 61138364832 | $0.35 | Shop at ECS Tuning | |||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | X | 03/2011 | 61138364834 | $0.35 | Shop at ECS Tuning | |||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,35-0,5 MM² SN | X | 03/2011 | 61138377162 | $0.35 | Shop at ECS Tuning | |||
