Third stoplamp for BMW 1 Series E88 135i (2010)

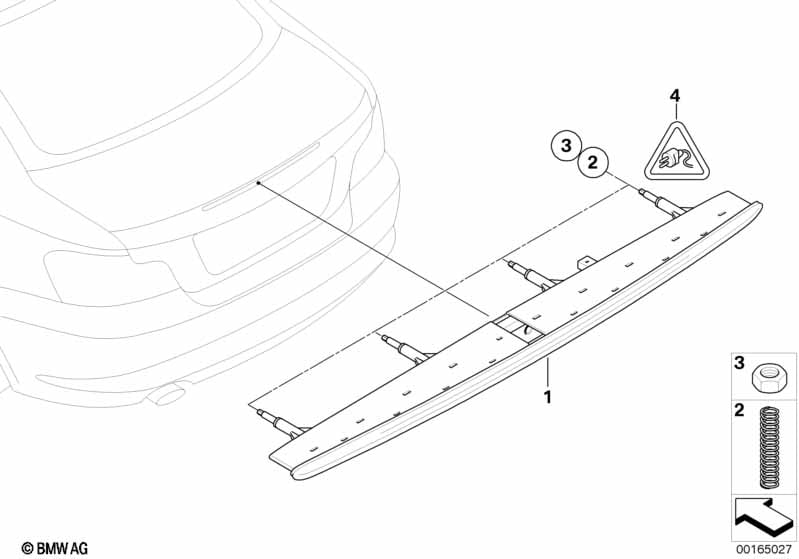

This Third stoplamp technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| See PuMA measure 19306813 |
||||||||||
| 01 | Third stoplamp | 1 | 04/2011 | 63257164978 | $121.18 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Spring for CHMSL | 4 | 04/2011 | 63257211238 | $0.53 | Shop at ECS Tuning | ||||
| -- | Hex nut with plate | M5 | 4 | 04/2011 | 63259128043 | $0.72 | Shop at ECS Tuning | |||
| 02 | Spring for CHMSL | 4 | 11/2007 | 63257211238 | $0.53 | Shop at ECS Tuning | ||||
| 03 | Hex nut with plate | M5 | 4 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 04 | Universal socket housing uncoded | 2 POL. | 1 | 61136925634 | $1.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | X | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | X | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
| 04 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
