Various lamps for BMW 1 Series E88 125i (2013)

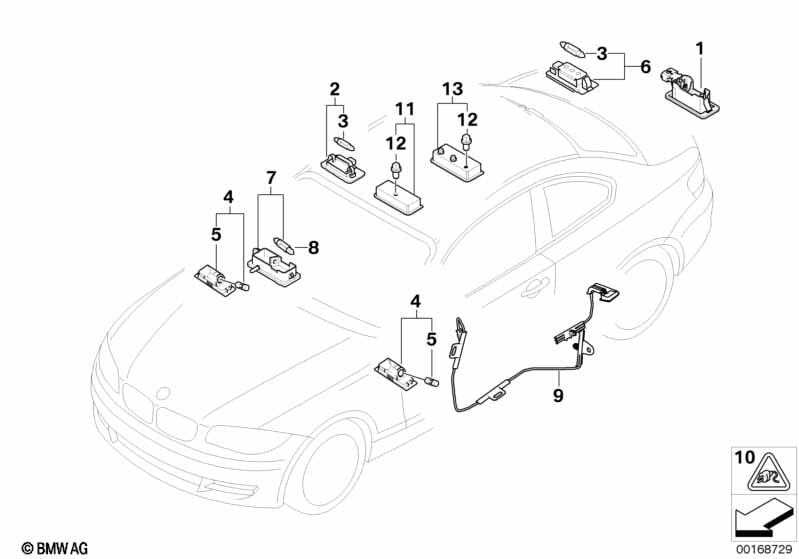

This Various lamps technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 125i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | License plate lamp, LED | 2 | 63267193293 | $15.33 | Shop at ECS Tuning | |||||
| 02 | Mirror lamp | 2 | 63316966491 | $14.33 | Shop at ECS Tuning | |||||
| 03 | Bulb | T5 12V 2,3W | 2 | 63217169186 | $3.00 | Shop at ECS Tuning | ||||
| 04 | Interior light | 5W TRÜB | 2 | 63316972605 | $11.92 | Shop at ECS Tuning | ||||
| 05 | Longlife bulb | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| Luggage compartment lighting | ||||||||||
| 06 | Interior light | 8W T10 | 1 | 63319270506 | Shop at ECS Tuning | |||||
| 07 | Glove box light | 1 | 63316962045 | $8.17 | Shop at ECS Tuning | |||||
| 08 | Bulb | 12V 5W | 1 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 09 | Door handle lighting, left | 1 | 63317184361 | $36.02 | Shop at ECS Tuning | |||||
| 09 | Door handle lighting, right | 1 | 63317184362 | $36.02 | Shop at ECS Tuning | |||||
| Suitable for Pos. 6 | ||||||||||
| 10 | Universal socket housing uncoded | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Universal socket housing uncoded | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| Suitable for Pos. 7 | ||||||||||
| 10 | Universal socket housing uncoded | 4 POL. | 1 | 61138380696 | $0.93 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| 10 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| Suitable for Pos. 1 | ||||||||||
| 10 | Rep. kit for socket housing | 2 POL. | 2 | 61132360043 | Shop at ECS Tuning | |||||
| 10 | Plug housing, yellow | 2 | 61131378419 | $1.15 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 ELA with cable | 1,0-2,5 MM² | X | 61130007571 | $2.65 | Shop at ECS Tuning | ||||
| Suitable for Pos. 4 | ||||||||||
| 10 | Rep. kit for socket housing | 2 POL. | 2 | 61132360043 | Shop at ECS Tuning | |||||
| 11 | Interior light, front | 1 | 61316951260 | $60.52 | Shop at ECS Tuning | |||||
| 12 | Bulb | 12V 6W XENON | X | 63217160908 | $7.94 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E88 125i Various lamps?
- This technical diagram illustrates the Various lamps within the Lighting group for the 1 Series E88 125i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the License plate lamp, LED (Part #63267193293).
- Which models use the hardware listed in this Various lamps?
- The hardware and components featured in the Various lamps are specific to the 1 Series E88 125i produced during 2013. These technical specifications ensure that parts like the License plate lamp, LED (63267193293) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Various lamps assembly?
- Each item in the Various lamps corresponds to the numbered list below the illustration. For the 1 Series E88 125i, you can identify the License plate lamp, LED by locating its position on the schematic, which then links to the official BMW part number 63267193293 for the Lighting section.
