Headlight for BMW 3 Series E91 LCI 320d (2012)

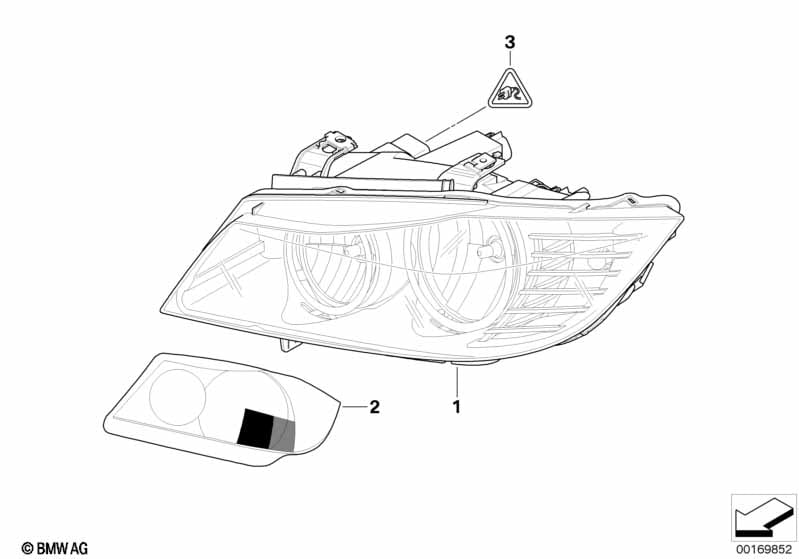

This Headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Headlight does not include electronic componentry or xenon bulb |
|||||||||
| 01 | Headlight left | VALEO | 1 | 63117202573 | Shop at ECS Tuning | |||||
| 01 | Headlight right | VALEO | 1 | 63117202574 | Shop at ECS Tuning | |||||
| 01 | Headlight left | ZKW | 1 | 63117202581 | Shop at ECS Tuning | |||||
| 01 | Headlight right | ZKW | 1 | 63117202582 | Shop at ECS Tuning | |||||
| For vehicles with Xenon Light |
S522A=Yes |
|||||||||
| 01 | Bi-xenon headlight, left | ZKW | 1 | 63117240247 | Shop at ECS Tuning | |||||
| 01 | Bi-xenon headlight, right | ZKW | 1 | 63117240248 | Shop at ECS Tuning | |||||
| For vehicles with Xenon Light and Adaptive Headlights |
S522A=Yes S524A=Yes |
|||||||||
| 01 | AHL-xenon headlight, left | ZKW | 1 | 63117240263 | Shop at ECS Tuning | |||||
| 01 | AHL-xenon headlight, right | ZKW | 1 | 63117240264 | Shop at ECS Tuning | |||||
| 02 | Set masking foil for headlamp, halogen | ZKW | 1 | 63112152541 | Shop at ECS Tuning | |||||
| 02 | Set masking foil for headlamp, halogen | VALEO | 1 | 63112153863 | Shop at ECS Tuning | |||||
| For vehicles with Xenon Light |
S522A=Yes |
|||||||||
| 02 | Set masking foil for headlamp, Xenon | ZKW | 1 | 63112152539 | Shop at ECS Tuning | |||||
| 03 | Rep. kit for socket housing | 12 POL. | 1 | 61132359991 | ENDED | Shop at ECS Tuning | ||||
