Individual parts for headlamp, halogen for BMW 3 Series E91 LCI 320d (2012)
This Individual parts for headlamp, halogen technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

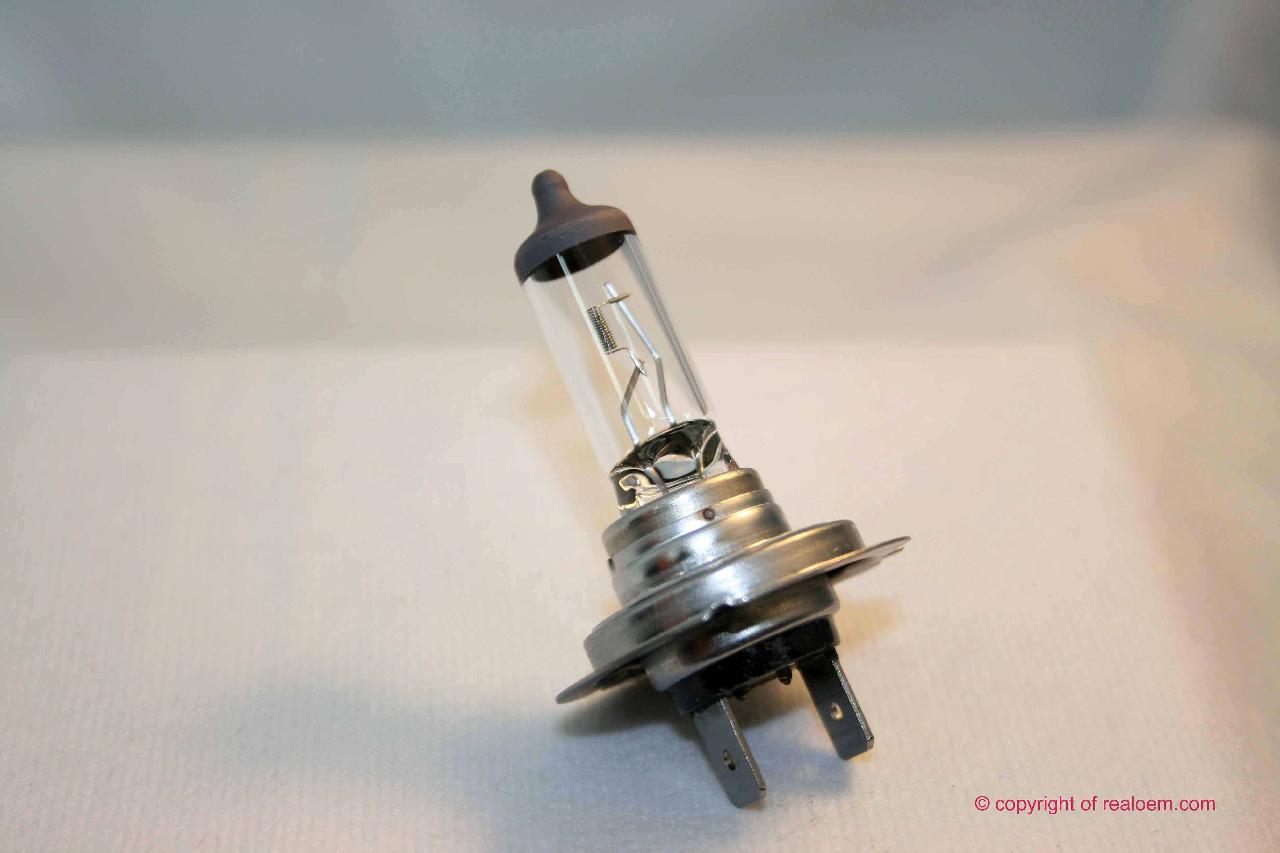

| 01 | Longlife bulb | 12V 55W H7 | 4 | 63217160781 | $20.90 | Shop at ECS Tuning | ||||
| 02 | Head light vertical aim control | 2 | 63117046049 | $76.77 | Shop at ECS Tuning | |||||
| 03 | Covering cap high beam, left | ZKW | 1 | 63127238826 | $7.02 | Shop at ECS Tuning | ||||
| 03 | Covering cap high beam, right | ZKW | 1 | 63127238827 | $7.02 | Shop at ECS Tuning | ||||
| 03 | Covering cap high beam, left | VALEO | 1 | 63127246481 | Shop at ECS Tuning | |||||
| 03 | Covering cap high beam, right | VALEO | 1 | 63127246482 | Shop at ECS Tuning | |||||
| 04 | Headlight cover | 2 | 63127681410 | $12.55 | Shop at ECS Tuning | |||||

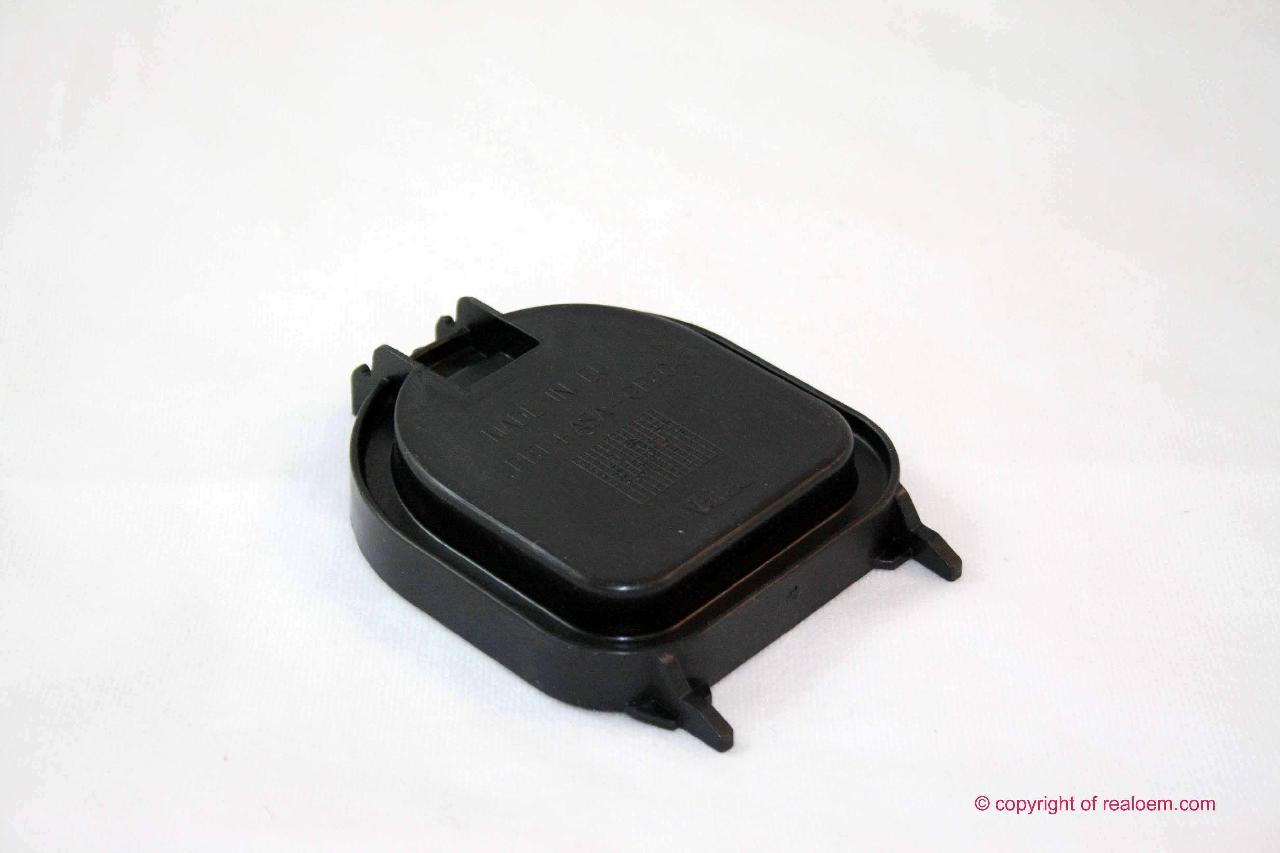

| 04 | Lamp cover low beam | VALEO | 2 | 63117159564 | $7.75 | Shop at ECS Tuning | ||||
| 05 | Bulb yellow | PY24W | 2 | 07119905468 | $31.36 | Shop at ECS Tuning | ||||
| 06 | Cover | 2 | 63117182521 | $8.55 | Shop at ECS Tuning | |||||
| 07 | Torx screw with washer | ISA M6X18 | 4 | 07146978618 | $2.56 | Shop at ECS Tuning | ||||

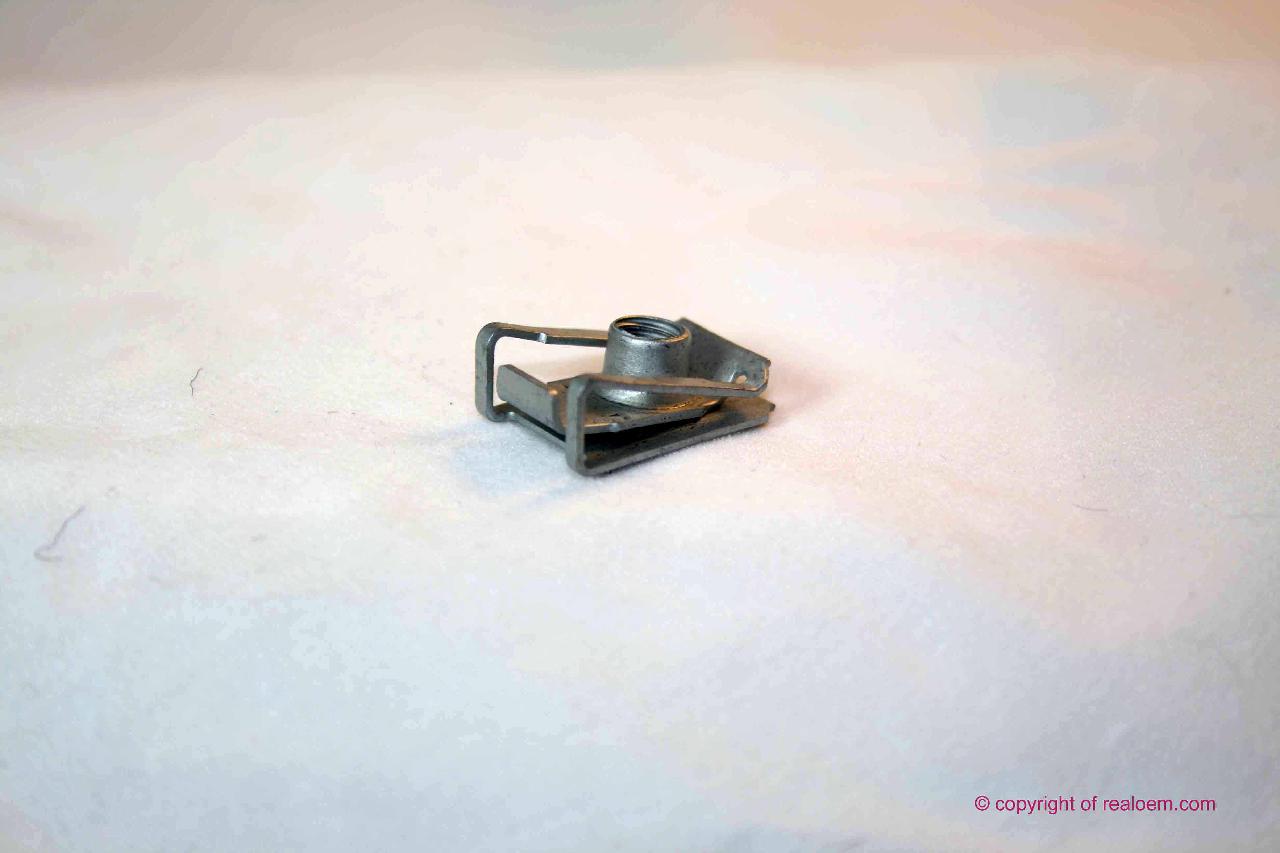

| 08 | Clip nut | M6 | 2 | 41357060601 | $0.70 | Shop at ECS Tuning | ||||
| Only suitable for use with ZKW | ||||||||||
| 09 | Lighting unit, light rings | ZKW | 2 | 63117161444 | $39.47 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO VALEO | ||||||||||
| 09 | Lighting unit, light rings | VALEO | 2 | 63112179077 | Shop at ECS Tuning | |||||
| 10 | Adjusting element, headlight | VALEO X | 2 | 63117168485 | $7.53 | Shop at ECS Tuning | ||||
| 10 | Adjusting element, headlight | VALEO Y | 2 | 63117168486 | $7.53 | Shop at ECS Tuning | ||||
| 10 | Adjusting element, headlight | ZKW X | 2 | 63117162083 | $7.53 | Shop at ECS Tuning | ||||
| 10 | Adjusting element, headlight | ZKW Y | 2 | 63117171086 | $7.53 | Shop at ECS Tuning | ||||
| 11 | Support | 2 | 63126924671 | $3.05 | Shop at ECS Tuning | |||||
| 12 | Support | 2 | 63127246480 | Shop at ECS Tuning | ||||||
