Fog lights for BMW 3 Series E91 LCI 320d (2012)

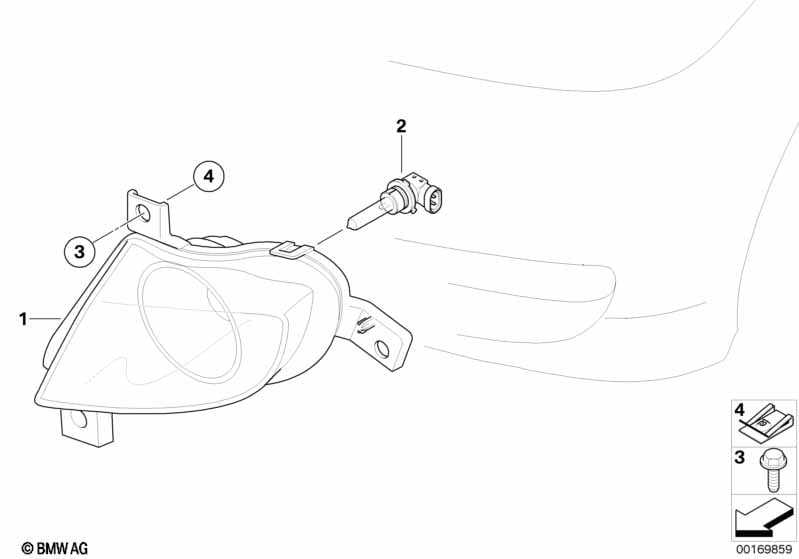

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=No |
||||||||
| For vehicles with M Aerodynamics package |
S715A=No |
|||||||||
| 01 | Fog lights, left | 1 | 63177199893 | $125.48 | Shop at ECS Tuning | |||||
| 01 | Fog lights, right | 1 | 63177199894 | $125.48 | Shop at ECS Tuning | |||||
| 02 | Bulb | H8 12V 35W | 2 | 07119906503 | Shop at ECS Tuning | |||||
| 03 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 04 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 4 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
