Reflector for BMW 7 Series F02 LCI 740Li (2015)

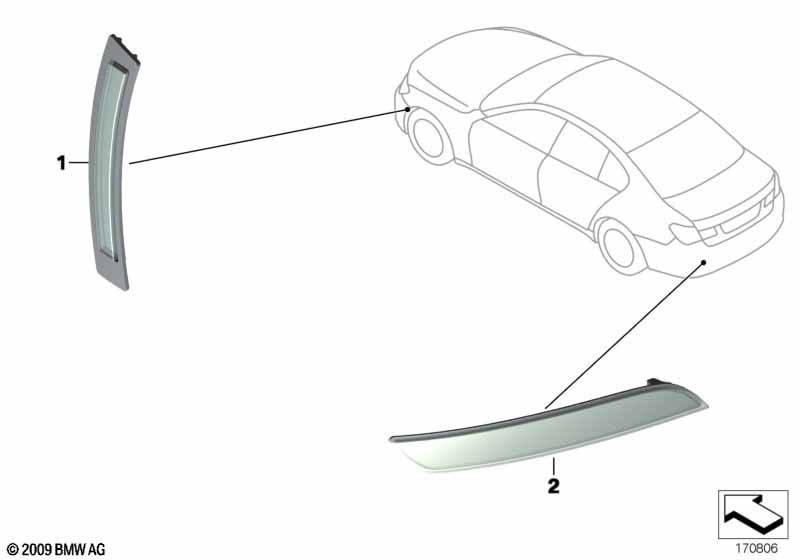

This Reflector technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side marker reflector, left | 1 | 63147191111 | $32.55 | Shop at ECS Tuning | |||||
| 01 | Side marker reflector, right | 1 | 63147191112 | $32.55 | Shop at ECS Tuning | |||||
| 02 | Reflector, rear left | 1 | 63147311179 | Shop at ECS Tuning | ||||||
| 02 | Reflector, rear right | 1 | 63147311180 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 02 | Reflector, rear left | 1 | 63147182191 | $17.22 | Shop at ECS Tuning | |||||
| 02 | Reflector, rear right | 1 | 63147182192 | $17.22 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 LCI 740Li Reflector?
- This technical diagram illustrates the Reflector within the Lighting group for the 7 Series F02 LCI 740Li produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Side marker reflector, left (Part #63147191111).
- Which models use the hardware listed in this Reflector?
- The hardware and components featured in the Reflector are specific to the 7 Series F02 LCI 740Li produced during 2015. These technical specifications ensure that parts like the Side marker reflector, left (63147191111) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Reflector assembly?
- Each item in the Reflector corresponds to the numbered list below the illustration. For the 7 Series F02 LCI 740Li, you can identify the Side marker reflector, left by locating its position on the schematic, which then links to the official BMW part number 63147191111 for the Lighting section.
