Rear light in trunk lid for BMW 7 Series F02 LCI 740Li (2015)

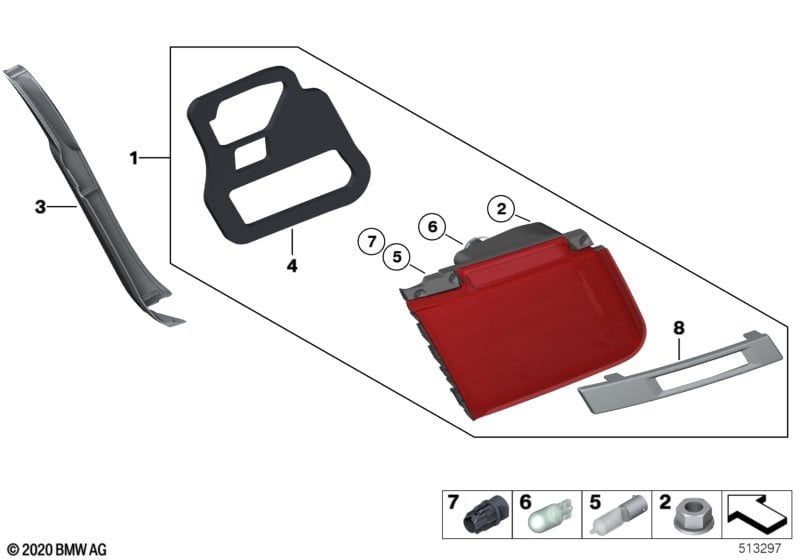

This Rear light in trunk lid technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear light in trunk lid, left | 1 | 63217300271 | Shop at ECS Tuning | ||||||
| 01 | Rear light in trunk lid, right | 1 | 63217300272 | Shop at ECS Tuning | ||||||
| 02 | Hex nut with plate | M5-8-ZNNIV SI | 6 | 07129904381 | $0.64 | Shop at ECS Tuning | ||||
| 03 | Tail light finisher, trunk lid, left | 1 | 63214881397 | ENDED | Shop at ECS Tuning | |||||
| 03 | Tail light finisher, trunk lid, right | 1 | 63214881398 | ENDED | Shop at ECS Tuning | |||||
| 04 | Gasket, rear light, trunk lid, left | 1 | 63217225241 | Shop at ECS Tuning | ||||||
| 04 | Gasket, rear light, trunk lid, right | 1 | 63217225242 | Shop at ECS Tuning | ||||||
| 05 | Longlife bulb | 12V 21W H21W | 2 | 63217160788 | $11.70 | Shop at ECS Tuning | ||||
| 06 | Longlife bulb | 12V 16W | 2 | 63217160935 | $6.42 | Shop at ECS Tuning | ||||
| 07 | Bulb socket | H21W | 2 | 63117407330 | Shop at ECS Tuning | |||||
| 08 | Chrome trim, taillight, trunk on left | 1 | 06/2009 | 63217225243 | $23.95 | Shop at ECS Tuning | ||||
| 08 | Chrome trim, taillight, trunk on right | 1 | 06/2009 | 63217225244 | Shop at ECS Tuning |
