Headlight, electronic parts / bulbs Headlight, electronic parts / bulbs for BMW 7 Series F02 750Li (2012)
This Headlight, electronic parts / bulbs Headlight, electronic parts / bulbs technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 750Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Headlight ballast moldule, xenon light | 2 | 63117316213 | Shop at ECS Tuning | ||||||

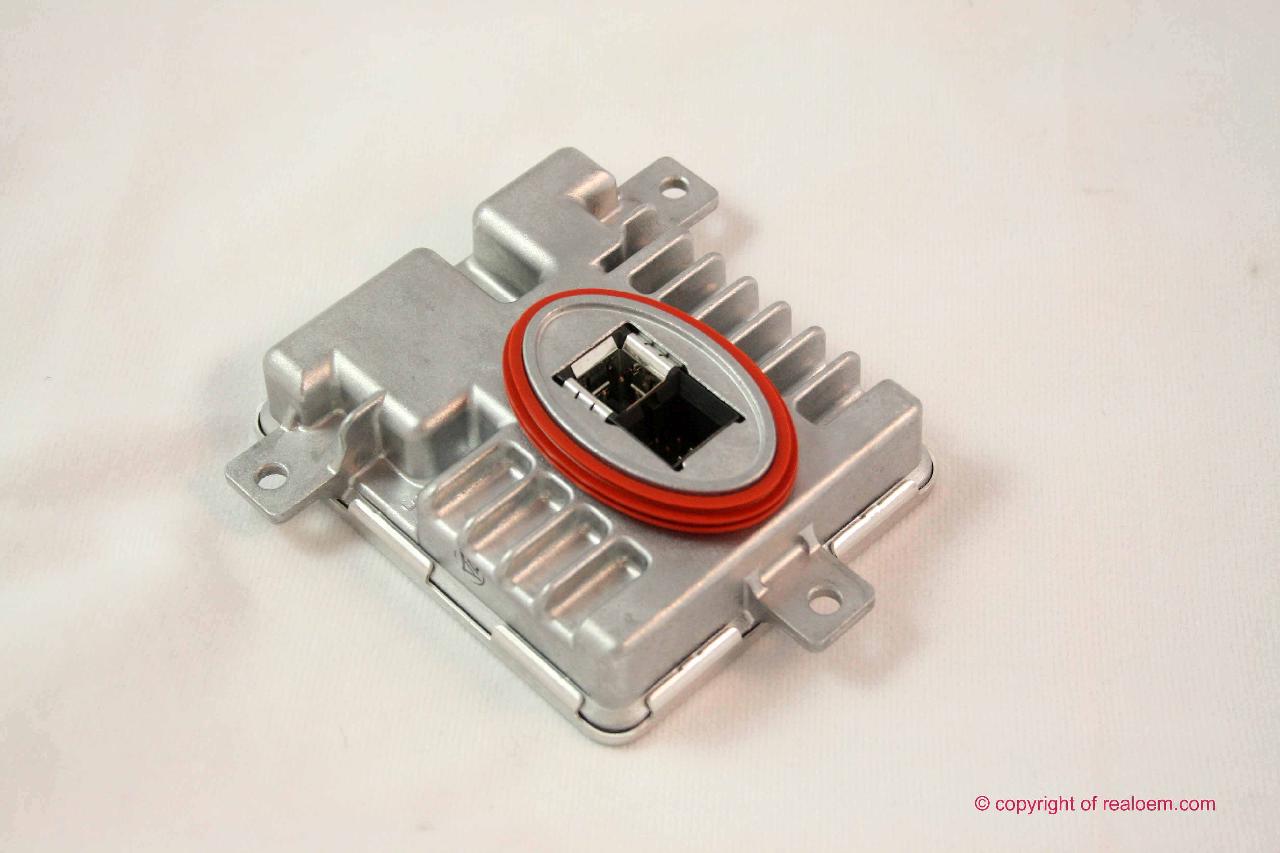

| 02 | Control unit xenon light | 2 | 06/2012 | 63117237647 | ENDED | Shop at ECS Tuning | ||||
| 02 | Control unit xenon light | 2 | 63117318327 | Shop at ECS Tuning | ||||||
| 03 | Head light vertical aim control | 2 | 63117046049 | $76.77 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive Headlights |
S524A=Yes |
|||||||||
| 05 | Bulb | 12V 55W H3 | 2 | 63217160779 | $21.84 | Shop at ECS Tuning | ||||
| 06 | Bulb | H8 12V 35W | 2 | 07119906503 | Shop at ECS Tuning | |||||
| 07 | Bulb Xenon light with ignition element | D1 12V 35W | 2 | 63217217509 | $212.43 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
