Rear light for BMW 3 Series E91 LCI 320d (2012)

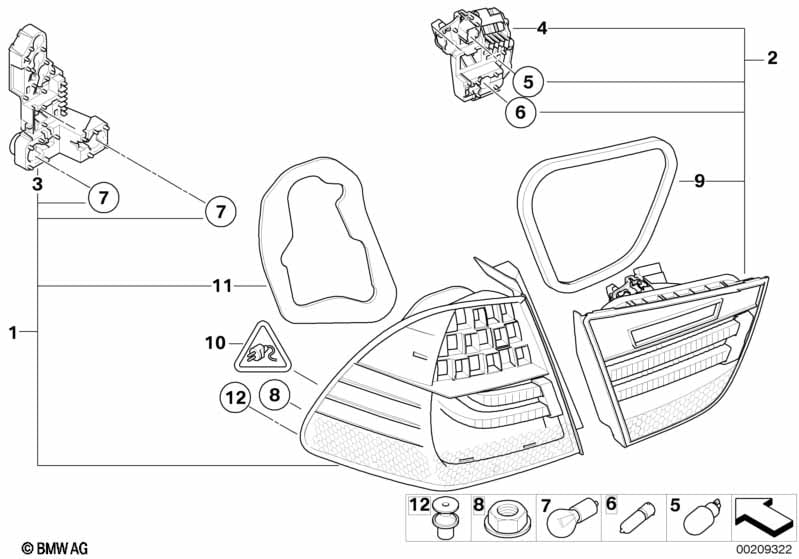

This Rear light technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear light in the side panel, left | 1 | 63217289431 | Shop at ECS Tuning | ||||||
| 01 | Rear light in the side panel, right | 1 | 63217289432 | Shop at ECS Tuning | ||||||
| 02 | Rear light in trunk lid, left | 1 | 63217289433 | Shop at ECS Tuning | ||||||
| 02 | Rear light in trunk lid, right | 1 | 63217289434 | Shop at ECS Tuning | ||||||
| 03 | Bulb socket, rear light side panel, left | 1 | 63217211217 | $19.65 | Shop at ECS Tuning | |||||
| 03 | Bulb socket, rear light side panel,right | 1 | 63217211218 | $19.65 | Shop at ECS Tuning | |||||
| 04 | Bulb socket,rear light in trunk lid,left | 1 | 63217211215 | Shop at ECS Tuning | ||||||
| 04 | Bulb socket,rear light in trunk lid,rght | 1 | 63217211216 | Shop at ECS Tuning | ||||||
| 05 | Longlife bulb | 12V 16W | 2 | 63217160935 | $6.42 | Shop at ECS Tuning | ||||
| 06 | Longlife bulb | 12V 21W H21W | 2 | 63217160788 | $11.70 | Shop at ECS Tuning | ||||
| 07 | Bulb | P21W/12V/21W | 4 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 08 | Hex nut with plate | M5-8-ZNNIV SI | 6 | 07129904381 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Gasket, rear light, trunk lid, left | 1 | 63217242151 | Shop at ECS Tuning | ||||||
| 09 | Gasket, rear light, trunk lid, right | 1 | 63217242152 | Shop at ECS Tuning | ||||||
| 11 | Seal, rear light, side panel left | 1 | 63217242153 | $7.46 | Shop at ECS Tuning | |||||
| 11 | Seal, rear light, side panel right | 1 | 63217242154 | Shop at ECS Tuning | ||||||
| 12 | Clip, rear light | 2 | 07147143826 | $0.47 | Shop at ECS Tuning |
