Strobe lamp - rear for BMW 3 Series E91 LCI 320d (2012)

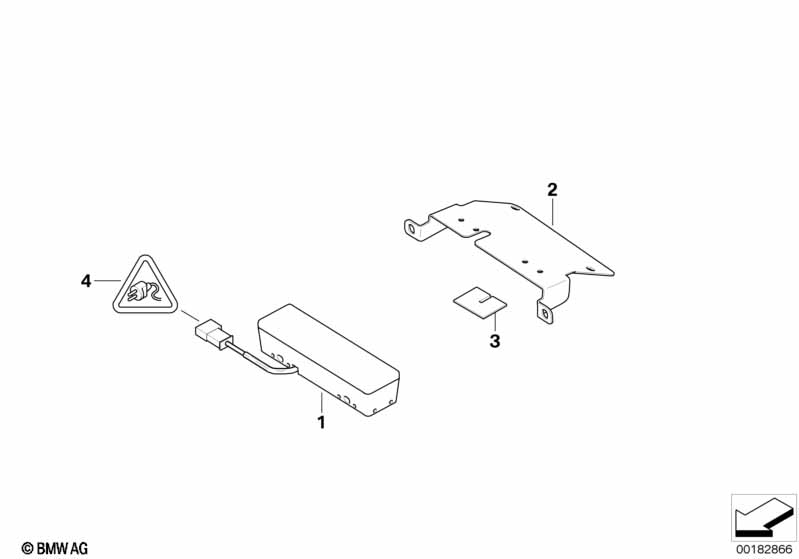

This Strobe lamp - rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Unmasked official vehicle |
S185A=Yes |
||||||||
| 01 | Flash signalling light | 2 | 63176951205 | +core | Shop at ECS Tuning | |||||
| 02 | Bulb support | LINKS | 1 | 63177220777 | Shop at ECS Tuning | |||||
| 02 | Bulb support | RECHTS | 1 | 63177220778 | Shop at ECS Tuning | |||||
| 03 | Set felt strip self-adhesive | 2 | 51452353024 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
