Rear light in the side panel for BMW 5 Series F07 GT 535dX (2012)

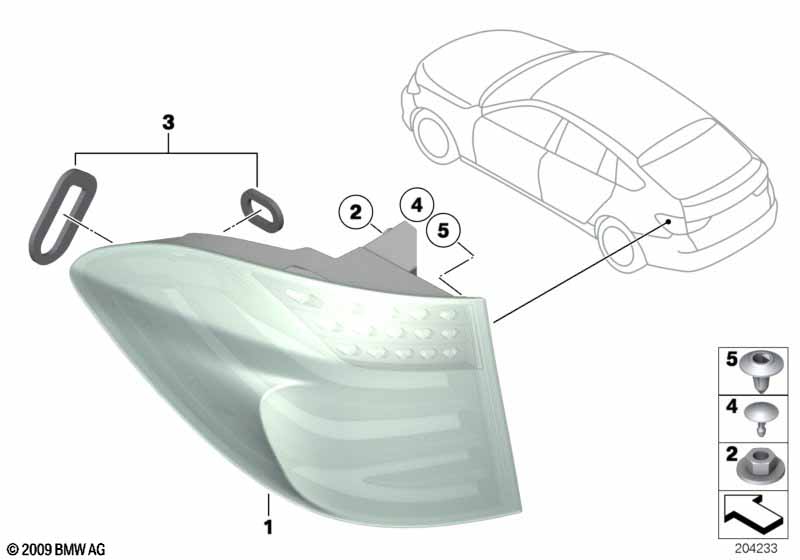

This Rear light in the side panel technical drawing provides a detailed breakdown of the assembly for the 5 Series F07 GT 535dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear light in the side panel, right | 1 | 63217199644 | Shop at ECS Tuning | ||||||
| 01 | Rear light in the side panel, left | 1 | 63217199643 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adapter cable, taillight | 1 | 61128780611 | Shop at ECS Tuning | ||||||
| 02 | Hex nut | BM6-8-ZNNIV SI | 6 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Seals, tail light, sidewall | 2 | 63217210583 | Shop at ECS Tuning | ||||||
| 04 | Clip, upper part | 4 | 51717048316 | $1.45 | Shop at ECS Tuning | |||||
| 05 | Clip, bottom part | 4 | 51438225566 | $0.24 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F07 GT 535dX Rear light in the side panel?
- This technical diagram illustrates the Rear light in the side panel within the Lighting group for the 5 Series F07 GT 535dX produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Rear light in the side panel, right (Part #63217199644).
- Which models use the hardware listed in this Rear light in the side panel?
- The hardware and components featured in the Rear light in the side panel are specific to the 5 Series F07 GT 535dX produced during 2012. These technical specifications ensure that parts like the Rear light in the side panel, right (63217199644) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear light in the side panel assembly?
- Each item in the Rear light in the side panel corresponds to the numbered list below the illustration. For the 5 Series F07 GT 535dX, you can identify the Rear light in the side panel, right by locating its position on the schematic, which then links to the official BMW part number 63217199644 for the Lighting section.
