Single components for headlight for BMW 5 Series F11 528i (2011)

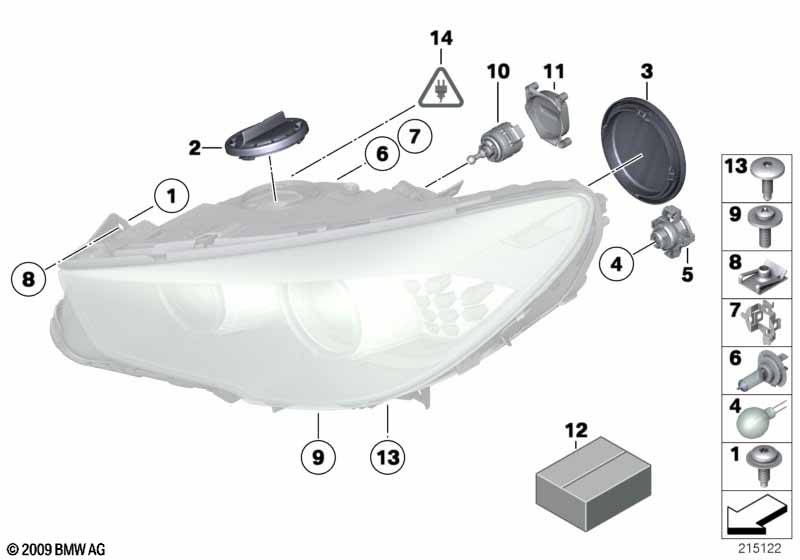

This Single components for headlight technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Xenon Light and Adaptive Headlights |
S522A=No S524A=No |
|||||||||
| 02 | Covering cap | 2 | 07/2013 | 63126931137 | $4.83 | Shop at ECS Tuning | ||||
| For vehicles with Xenon Light and Adaptive Headlights |
S522A=Yes S524A=Yes |
|||||||||
| 02 | Covering cap | 2 | 07/2013 | 63126931137 | $4.83 | Shop at ECS Tuning | ||||
| 03 | Covering cap | 2 | 07/2013 | 63117204272 | $13.68 | Shop at ECS Tuning | ||||
| For vehicles with Xenon Light or Adaptive Headlights |
S522A=No S524A=No |
|||||||||
| 04 | Bulb yellow | PY24W | 2 | 07/2013 | 07119905468 | $31.36 | Shop at ECS Tuning | |||
| 05 | Cover | 2 | 07/2013 | 63117182521 | $8.55 | Shop at ECS Tuning | ||||
| 06 | Longlife bulb | 12V 55W H7 | 2 | 07/2013 | 63217160781 | $20.90 | Shop at ECS Tuning | |||
| 07 | Retaining spring for bulb H7 | 2 | 07/2013 | 63117175336 | $3.28 | Shop at ECS Tuning | ||||
| 08 | C-clip nut | M6-ZNS3 | 10 | 07/2013 | 51127070202 | $1.00 | Shop at ECS Tuning | |||
| 09 | Fillister head screw with collar | M4X14 | 16 | 07/2013 | 46637659479 | $1.20 | Shop at ECS Tuning | |||
| 10 | Head light vertical aim control | 1 | 07/2013 | 63117207574 | Shop at ECS Tuning | |||||
| 11 | Cover cap,left vert. hd./lt. aim control | 1 | 07/2013 | 63127262837 | Shop at ECS Tuning | |||||
| 11 | Cover cap,right vert. hd/lt aim control | 1 | 07/2013 | 63127262838 | Shop at ECS Tuning | |||||
| 12 | Repair kit headlight | 2 | 07/2013 | 63117296902 | Shop at ECS Tuning | |||||
| COMPRISES Headlight cover Ventilation grommet PT screw |
||||||||||
| 13 | Combi oval-head machine screw | 2 | 07/2013 | 11119143167 | Shop at ECS Tuning | |||||
| 14 | Rep. kit for socket housing | 12 POL. | 2 | 07/2013 | 61132359991 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
