Fog lights for BMW X3 F25 35iX

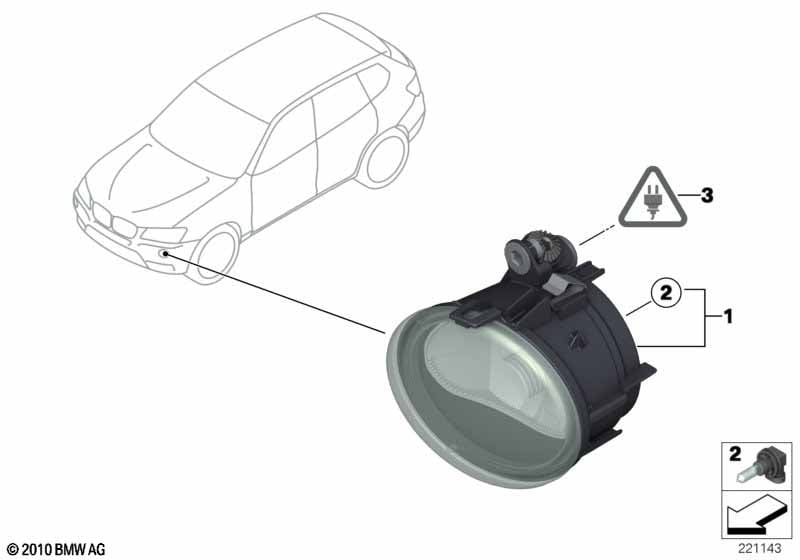

This Fog lights technical drawing provides a detailed breakdown of the assembly for the X3 F25 35iX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fog lights, left | 1 | 04/2014 | 63177238787 | Shop at ECS Tuning | |||||
| 01 | Fog lights, right | 1 | 04/2014 | 63177238788 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive Headlights |
S524A=Yes |
|||||||||
| 01 | Fog lights, left | 1 | 04/2014 | 63177238789 | Shop at ECS Tuning | |||||
| 01 | Fog lights, right | 1 | 04/2014 | 63177238790 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive Headlights and Adaptive LED headlight and LED Fog lights |
S524A=No S552A=No S5A1A=No |
|||||||||
| 01 | Fog lights, right | 1 | 04/2014 | 63177238788 | Shop at ECS Tuning | |||||
| 01 | Fog lights, left | 1 | 04/2014 | 63177238787 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive Headlights |
S524A=Yes |
|||||||||
| 02 | Longlife bulb | H11 55W | 2 | 04/2014 | 63217160784 | $53.74 | Shop at ECS Tuning | |||
| For vehicles with Adaptive Headlights |
S524A=No |
|||||||||
| 02 | Bulb | H8 12V 35W | 2 | 07119906503 | Shop at ECS Tuning | |||||
