Rear light for BMW X3 F25 35iX

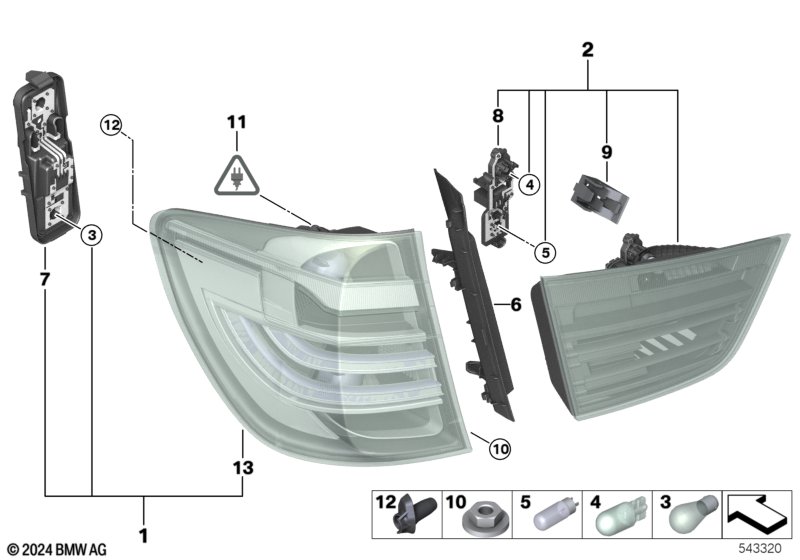

This Rear light technical drawing provides a detailed breakdown of the assembly for the X3 F25 35iX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Xenon Light and Adaptive Headlights and Adaptive LED headlight |
S522A=No S524A=No S552A=No |
|||||||||
| 01 | Rear light in the side panel, left | 1 | 63217220239 | +core | Shop at ECS Tuning | |||||
| 01 | Rear light in the side panel, right | 1 | 63217220240 | +core | Shop at ECS Tuning | |||||
| For vehicles with Xenon Light or Adaptive Headlights or Adaptive LED headlight |
S522A=Yes S524A=Yes S552A=Yes |
|||||||||
| 01 | Rear light in the side panel, left | 1 | 63217220241 | +core | Shop at ECS Tuning | |||||
| 01 | Rear light in the side panel, right | 1 | 63217220242 | +core | Shop at ECS Tuning | |||||
| For vehicles with Xenon Light and Adaptive Headlights and Adaptive LED headlight |
S522A=No S524A=No S552A=No |
|||||||||
| 02 | Rear light in trunk lid, left | 1 | 63217217309 | +core | Shop at ECS Tuning | |||||
| 02 | Rear light in trunk lid, right | 1 | 63217217310 | Shop at ECS Tuning | ||||||
| For vehicles with Xenon Light or Adaptive Headlights or Adaptive LED headlight |
S522A=Yes S524A=Yes S552A=Yes |
|||||||||
| 02 | Tail light trunk lid LED left | 1 | 63217217313 | Shop at ECS Tuning | ||||||
| 02 | Tail light trunk lid LED right | 1 | 63217217314 | +core | Shop at ECS Tuning | |||||
| 03 | Longlife bulb | P21W/12V/21W | 4 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 04 | Longlife bulb | 12V 16W | 2 | 63217160935 | $6.42 | Shop at ECS Tuning | ||||
| 05 | Longlife bulb | 12V 21W H21W | 2 | 63217160788 | $11.70 | Shop at ECS Tuning | ||||
| 06 | Covering left | 1 | 63217263603 | Shop at ECS Tuning | ||||||
| 06 | Covering right | 1 | 63217263604 | Shop at ECS Tuning | ||||||
| 07 | Bulb socket, rear light side panel | 2 | 63217288198 | Shop at ECS Tuning | ||||||
| 08 | Bulb socket,rear light in trunk lid | 2 | 63217288199 | +core | Shop at ECS Tuning | |||||
| 09 | Clamp, taillight, trunk lid | 2 | 63217288200 | Shop at ECS Tuning | ||||||
| 10 | Nut | M6 | 8 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
| 12 | Grommet | 2 | 63217256642 | Shop at ECS Tuning | ||||||
| For vehicles with Xenon Light and Adaptive Headlights and Adaptive LED headlight without bulb support |
S522A=No S524A=No S552A=No |
|||||||||
| 13 | Tail light without bulb support left | 1 | 63215B529C1 | Shop at ECS Tuning | ||||||
| 13 | Tail light without bulb support right | 1 | 63215B529C2 | Shop at ECS Tuning | ||||||
| For vehicles with Xenon Light or Adaptive Headlights or Adaptive LED headlight without bulb support |
S522A=Yes S524A=Yes S552A=Yes |
|||||||||
| 13 | Tail light without bulb support left | 1 | 63215B529B7 | Shop at ECS Tuning | ||||||
| 13 | Tail light without bulb support right | 1 | 63215B529B8 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
