Single components f headlight Xenon/ALC for BMW X3 F25 35iX

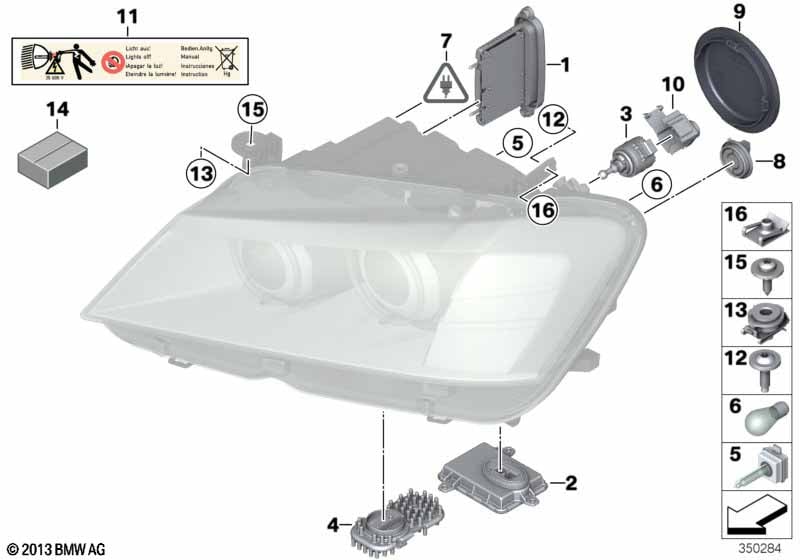

This Single components f headlight Xenon/ALC technical drawing provides a detailed breakdown of the assembly for the X3 F25 35iX. It includes part names, part numbers and all associated mounting hardware.

Single components f headlight Xenon/ALC
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Driver module for headlight 2 04/2014 63117316214 Shop at ECS Tuning
02 Control unit xenon light 2 04/2014 63117356250 Shop at ECS Tuning
For vehicles with
Xenon Light
and
Adaptive Headlights
S522A=Yes

S524A=Yes
03 Repair kit for LWR servo motor 2 04/2014 63117263050 Shop at ECS Tuning
For vehicles with
Xenon Light
and
Adaptive Headlights
S522A=Yes

S524A=No
03 Repair kit for LWR servo motor 2 04/2014 63117263050 Shop at ECS Tuning
For vehicles with
Xenon Light
and
Adaptive Headlights
S522A=No

S524A=Yes
03 Repair kit for LWR servo motor 2 04/2014 63117263050 Shop at ECS Tuning
04 Set of LED modules 2 04/2014 63117263051 Shop at ECS Tuning
05 Bulb Xenon light with ignition element D1 12V 35W 2 04/2014 63217217509 $212.43 Shop at ECS Tuning
06 Bulb silver 12V 21W 2 04/2014 63217160897 $19.40 Shop at ECS Tuning
For vehicles with
White direction indicator lights
S785A=Yes
06 Longlife bulb, Gelb PY21W 12V 21W 2 04/2014 63217176025 $5.58 Shop at ECS Tuning
06 Bulb yellow PY21W/12V/21W 2 04/2014 63217160791 $5.58 Shop at ECS Tuning
08 Bulb socket, turn indicator 2 04/2014 63117287863 Shop at ECS Tuning
09 Lamp cover low beam 2 04/2014 63127270076 Shop at ECS Tuning
10 Protective cap, left 1 04/2014 63117332085 Shop at ECS Tuning
10 Protective cap, right 1 04/2014 63117332086 Shop at ECS Tuning
11 Stick-on label xenon-light 2 04/2014 71237248266 Shop at ECS Tuning
12 Oval-head screw with washer ISA M6X21 4 04/2014 07147263759 Shop at ECS Tuning
13 Alignment element 6 04/2014 63127280779 Shop at ECS Tuning
15 Countersunk screw M6X35 6 04/2014 07119907286 Shop at ECS Tuning
16 C-clip nut M6-ZNS3 6 04/2014 51127070202 $1.00 Shop at ECS Tuning
