Individual parts for headlamp, halogen for BMW X3 F25 35iX

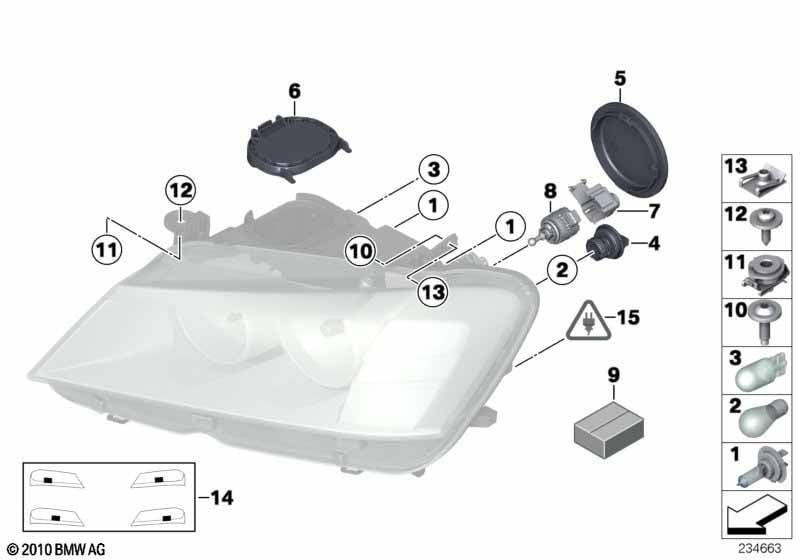

This Individual parts for headlamp, halogen technical drawing provides a detailed breakdown of the assembly for the X3 F25 35iX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bulb | H7/55W | 4 | 04/2014 | 63217160780 | $18.86 | Shop at ECS Tuning | |||
| 01 | Longlife bulb | 12V 55W H7 | 4 | 04/2014 | 63217160781 | $20.90 | Shop at ECS Tuning | |||
| 02 | Bulb silver | 12V 21W | 2 | 04/2014 | 63217160897 | $19.40 | Shop at ECS Tuning | |||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 02 | Bulb yellow | PY21W/12V/21W | 2 | 04/2014 | 63217160791 | $5.58 | Shop at ECS Tuning | |||
| 03 | Longlife bulb | 5W | 2 | 04/2014 | 63217160797 | $1.96 | Shop at ECS Tuning | |||
| 04 | Bulb socket, turn indicator | 2 | 04/2014 | 63117287863 | Shop at ECS Tuning | |||||
| 05 | Lamp cover low beam | 2 | 04/2014 | 63127270076 | Shop at ECS Tuning | |||||
| 06 | High beam cover | 2 | 04/2014 | 63126934753 | $12.70 | Shop at ECS Tuning | ||||
| 07 | Protective cap, left | 1 | 04/2014 | 63117332085 | Shop at ECS Tuning | |||||
| 07 | Protective cap, right | 1 | 04/2014 | 63117332086 | Shop at ECS Tuning | |||||
| 08 | Repair kit for LWR servo motor | 2 | 04/2014 | 63123448948 | $49.15 | Shop at ECS Tuning | ||||
| 10 | Oval-head screw with washer | ISA M6X21 | 4 | 04/2014 | 07147263759 | Shop at ECS Tuning | ||||
| 11 | Alignment element | 6 | 04/2014 | 63127280779 | Shop at ECS Tuning | |||||
| 12 | Countersunk screw | M6X35 | 6 | 04/2014 | 07119907286 | Shop at ECS Tuning | ||||
| 13 | C-clip nut | M6-ZNS3 | 6 | 04/2014 | 51127070202 | $1.00 | Shop at ECS Tuning | |||
