Single components for headlight for BMW 1 Series E82 120i (2013)

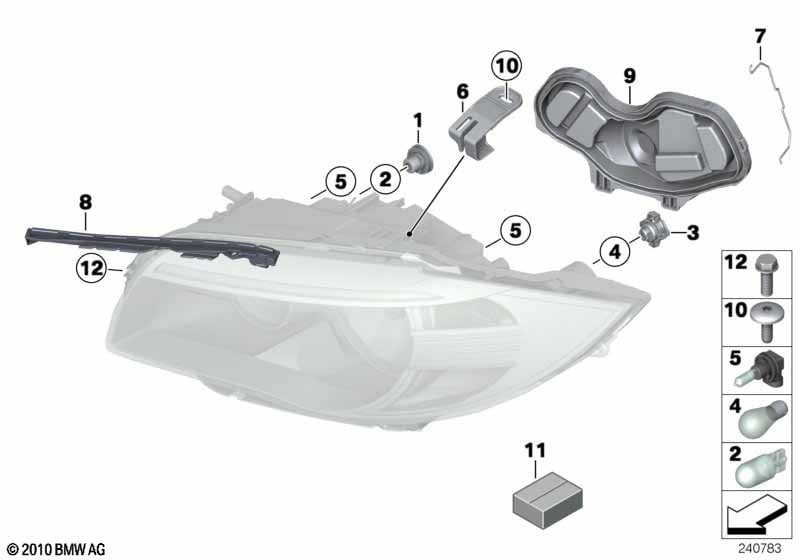

This Single components for headlight technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bulb socket, parking light | 2 | 03/2011 | 63116952785 | Shop at ECS Tuning | |||||
| 02 | Longlife bulb | 5W | 2 | 03/2011 | 63217160797 | $1.96 | Shop at ECS Tuning | |||
| 03 | Bulb socket, turn indicator | 2 | 03/2011 | 63126940665 | $8.58 | Shop at ECS Tuning | ||||
| 04 | Longlife bulb, Gelb | PY21W 12V 21W | 2 | 03/2011 | 63217176025 | $5.58 | Shop at ECS Tuning | |||
| 05 | Longlife bulb | 12V 55W H7 | 4 | 03/2011 | 63217160781 | $20.90 | Shop at ECS Tuning | |||
| 06 | Bracket headlight left | 1 | 03/2011 | 63126940663 | $4.75 | Shop at ECS Tuning | ||||
| 06 | Bracket headlight right | 1 | 03/2011 | 63126940664 | $4.75 | Shop at ECS Tuning | ||||
| 07 | Support | 2 | 03/2011 | 63126924671 | $3.05 | Shop at ECS Tuning | ||||
| 08 | Gasket, headlight, left | 1 | 03/2011 | 63117187861 | $4.00 | Shop at ECS Tuning | ||||
| 08 | Gasket, headlight, right | 1 | 03/2011 | 63117187862 | $4.00 | Shop at ECS Tuning | ||||
| 09 | Left headlight cover | 1 | 03/2011 | 63126924493 | $7.53 | Shop at ECS Tuning | ||||
| 09 | Right headlight cover | 1 | 03/2011 | 63126924494 | $7.53 | Shop at ECS Tuning | ||||
| 10 | Torx bolt | ISA M6X18 SW | 4 | 03/2011 | 07146959923 | $0.55 | Shop at ECS Tuning | |||
| 11 | Repair kit for headlight left and right | 1 | 03/2011 | 63116924482 | $22.35 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X35 | 4 | 03/2011 | 07119905188 | $2.11 | Shop at ECS Tuning |
