Third stoplamp for BMW 6 Series F12 640d (2015)

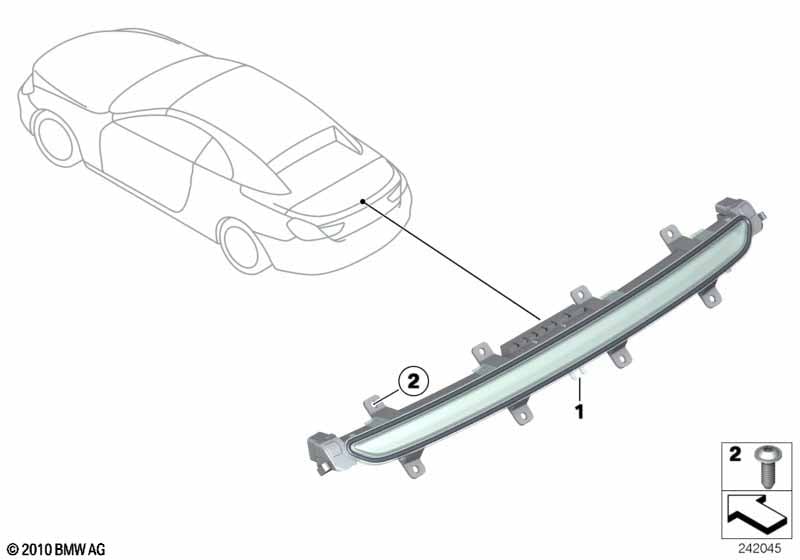

This Third stoplamp technical drawing provides a detailed breakdown of the assembly for the 6 Series F12 640d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Third stoplamp | 1 | 63257210574 | Shop at ECS Tuning | ||||||
| 02 | Screw for thermoplastic plastics | M5X20MM ZNFE SW | 8 | 51162755697 | $0.41 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series F12 640d Third stoplamp?
- This technical diagram illustrates the Third stoplamp within the Lighting group for the 6 Series F12 640d produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Third stoplamp (Part #63257210574).
- Which models use the hardware listed in this Third stoplamp?
- The hardware and components featured in the Third stoplamp are specific to the 6 Series F12 640d produced during 2015. These technical specifications ensure that parts like the Third stoplamp (63257210574) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Third stoplamp assembly?
- Each item in the Third stoplamp corresponds to the numbered list below the illustration. For the 6 Series F12 640d, you can identify the Third stoplamp by locating its position on the schematic, which then links to the official BMW part number 63257210574 for the Lighting section.
