LED module / fiber-optic for BMW 6 Series F12 640d (2015)

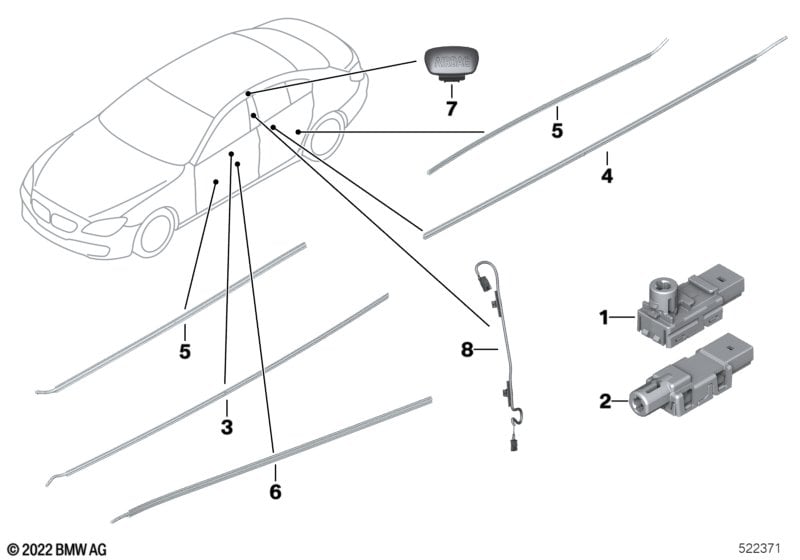

This LED module / fiber-optic technical drawing provides a detailed breakdown of the assembly for the 6 Series F12 640d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | LED module | 2-POLIG, CODE A | 1 | 63319163755 | Shop at ECS Tuning | |||||
| 02 | LED module | 2-POLIG, CODE B | 6 | 63319163756 | Shop at ECS Tuning | |||||
| 03 | Optical conduct., door panel, left front | 1 | 63319198587 | Shop at ECS Tuning | ||||||
| 03 | Optical conductor, door panel, ri. front | 1 | 63319198588 | Shop at ECS Tuning | ||||||
| 06 | Optical conductor, door pocket, left | 1 | 63319163717 | Shop at ECS Tuning | ||||||
| 06 | Optical conductor, door pocket, right | 1 | 63319163718 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series F12 640d LED module / fiber-optic?
- This technical diagram illustrates the LED module / fiber-optic within the Lighting group for the 6 Series F12 640d produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the LED module (Part #63319163755).
- Which models use the hardware listed in this LED module / fiber-optic?
- The hardware and components featured in the LED module / fiber-optic are specific to the 6 Series F12 640d produced during 2015. These technical specifications ensure that parts like the LED module (63319163755) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the LED module / fiber-optic assembly?
- Each item in the LED module / fiber-optic corresponds to the numbered list below the illustration. For the 6 Series F12 640d, you can identify the LED module by locating its position on the schematic, which then links to the official BMW part number 63319163755 for the Lighting section.
