Rear light for BMW 1 Series F20 118d (2014)

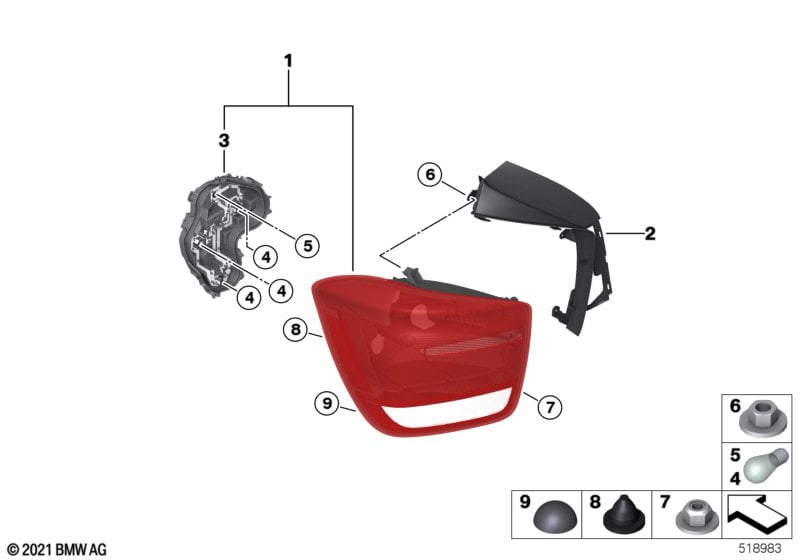

This Rear light technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2014.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tail light left | 1 | 63217270097 | +core | Shop at ECS Tuning | |||||
| Observe Service Information Bulletin 55712456 -02! |
||||||||||
| 01 | Tail light right | 1 | 63217270098 | +core | Shop at ECS Tuning | |||||
| Observe Service Information Bulletin 55712456 -02! |
||||||||||
| For vehicles with Xenon Light |
S522A=Yes |
|||||||||
| 01 | Tail light left | 1 | 63217241543 | +core | Shop at ECS Tuning | |||||
| Observe Service Information Bulletin 55712456 -02! |
||||||||||
| 01 | Tail light right | 1 | 63217241544 | +core | Shop at ECS Tuning | |||||
| Observe Service Information Bulletin 55712456 -02! |
||||||||||
| 02 | Trim, drip rail, left | 1 | 63217315201 | Shop at ECS Tuning | ||||||
| 02 | Trim, drip rail, right | 1 | 63217315202 | Shop at ECS Tuning | ||||||
| 03 | Bulb socket, rear left light | 1 | 63217315199 | +core | Shop at ECS Tuning | |||||
| 03 | Bulb socket, rear right light | 1 | 63217315200 | +core | Shop at ECS Tuning | |||||
| 04 | Bulb | P21W/12V/21W | 4 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 05 | Bulb yellow | PY21W/12V/21W | 2 | 63217160791 | $5.58 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M5-8-ZNNIV SI | 6 | 07129904381 | $0.64 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 08 | Snap-lock coupling | 8 | 07147306640 | Shop at ECS Tuning | ||||||
| 09 | Rubber buffer | 2 | 54347166771 | $0.44 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
