Headlight for BMW 3 Series F35 320Li (2011)

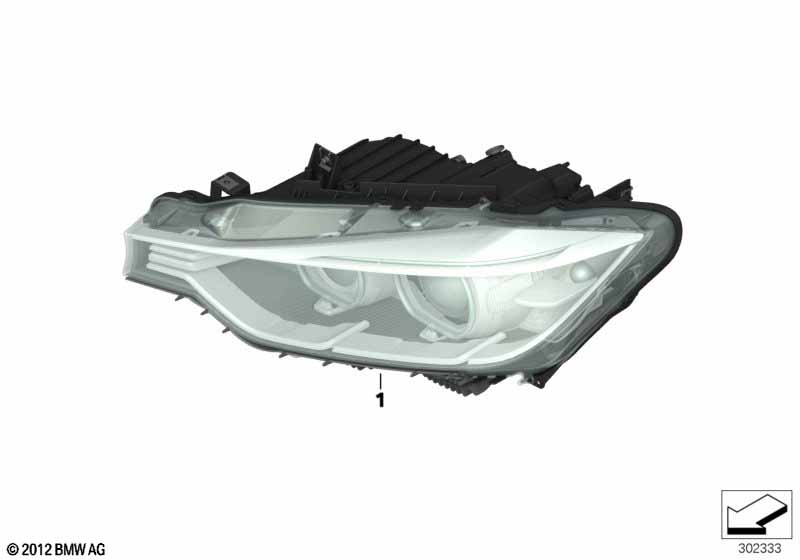

This Headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series F35 320Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Headlight left | 1 | 01/2013 | 63117284617 | Shop at ECS Tuning | |||||
| 01 | Headlight right | 1 | 01/2013 | 63117284618 | Shop at ECS Tuning | |||||
| For vehicles with Xenon Light and Adaptive Headlights |
S522A=Yes S524A=Yes |
|||||||||
| 01 | Headlight, bi-xenon, AHL, left | 1 | 01/2013 | 63117339391 | Shop at ECS Tuning | |||||
| 01 | Headlight, bi-xenon, AHL, right | 1 | 01/2013 | 63117339392 | Shop at ECS Tuning | |||||
| For vehicles with CKD China Low and CKD China high and CKD China Top and Xenon Light |
P7K2A=Yes P7K4A=Yes P7K5A=Yes S522A=Yes |
|||||||||
| 01 | Bi-xenon headlight, left | 1 | 01/2013 | 63117339389 | Shop at ECS Tuning | |||||
| 01 | Bi-xenon headlight, right | 1 | 01/2013 | 63117339390 | Shop at ECS Tuning | |||||
| For vehicles with CKD China Low and CKD China high and CKD China Top and Xenon Light |
P7K2A=Yes P7K4A=Yes P7K5A=No S522A=Yes |
|||||||||
| 01 | Bi-xenon headlight, left | 1 | 01/2013 | 63117339389 | Shop at ECS Tuning | |||||
| 01 | Bi-xenon headlight, right | 1 | 01/2013 | 63117339390 | Shop at ECS Tuning | |||||
| For vehicles with CKD China Low and CKD China high and CKD China Top and Xenon Light |
P7K2A=Yes P7K4A=No P7K5A=Yes S522A=Yes |
|||||||||
| 01 | Bi-xenon headlight, left | 1 | 01/2013 | 63117339389 | Shop at ECS Tuning | |||||
| 01 | Bi-xenon headlight, right | 1 | 01/2013 | 63117339390 | Shop at ECS Tuning | |||||
| For vehicles with CKD China Low and CKD China high and CKD China Top and Xenon Light |
P7K2A=Yes P7K4A=No P7K5A=No S522A=Yes |
|||||||||
| 01 | Bi-xenon headlight, left | 1 | 01/2013 | 63117339389 | Shop at ECS Tuning | |||||
| 01 | Bi-xenon headlight, right | 1 | 01/2013 | 63117339390 | Shop at ECS Tuning | |||||
| For vehicles with CKD China Low and CKD China high and CKD China Top and Xenon Light |
P7K2A=No P7K4A=Yes P7K5A=Yes S522A=Yes |
|||||||||
| 01 | Bi-xenon headlight, left | 1 | 01/2013 | 63117339389 | Shop at ECS Tuning | |||||
| 01 | Bi-xenon headlight, right | 1 | 01/2013 | 63117339390 | Shop at ECS Tuning | |||||
| For vehicles with CKD China Low and CKD China high and CKD China Top and Xenon Light |
P7K2A=No P7K4A=Yes P7K5A=No S522A=Yes |
|||||||||
| 01 | Bi-xenon headlight, left | 1 | 01/2013 | 63117339389 | Shop at ECS Tuning | |||||
| 01 | Bi-xenon headlight, right | 1 | 01/2013 | 63117339390 | Shop at ECS Tuning | |||||
| For vehicles with CKD China Low and CKD China high and CKD China Top and Xenon Light |
P7K2A=No P7K4A=No P7K5A=Yes S522A=Yes |
|||||||||
| 01 | Bi-xenon headlight, left | 1 | 01/2013 | 63117339389 | Shop at ECS Tuning | |||||
| 01 | Bi-xenon headlight, right | 1 | 01/2013 | 63117339390 | Shop at ECS Tuning | |||||
| For vehicles with CKD China Low and CKD China high and CKD China Top and Xenon Light and Adaptive Headlights |
P7K2A=No P7K4A=No P7K5A=No S522A=Yes S524A=No |
|||||||||
| 01 | Bi-xenon headlight, left | 1 | 01/2013 | 63117339389 | Shop at ECS Tuning | |||||
| 01 | Bi-xenon headlight, right | 1 | 01/2013 | 63117339390 | Shop at ECS Tuning | |||||
