Various lamps for BMW 3 Series F31 LCI 320d

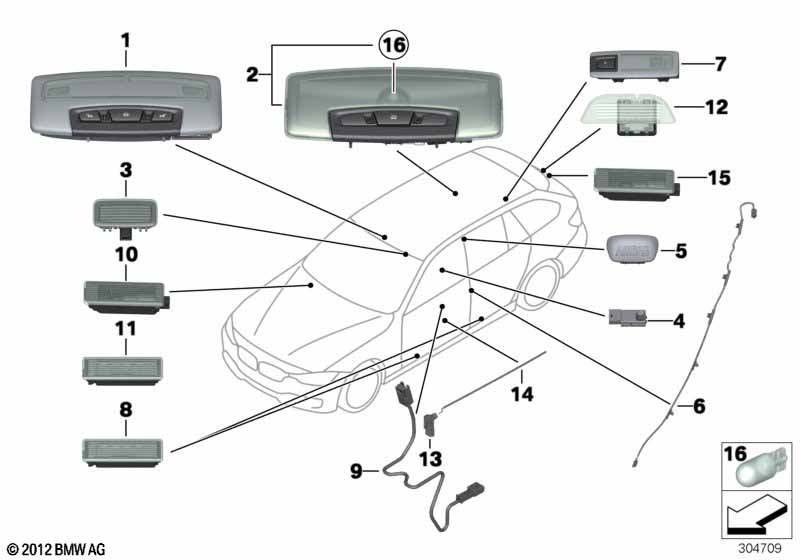

This Various lamps technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 LCI 320d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Interior light, front | 1 | 63319219497 | Shop at ECS Tuning | ||||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 01 | Interior light, front | LED | 1 | 63319312494 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Modern Line and Luxury Line and Light package |
P337A=Yes P7ACA=Yes P7S1A=Yes P7S2A=Yes S563A=Yes |
|||||||||
| 01 | Interior light, front | LED | 1 | 61319312496 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Modern Line and Luxury Line and Light package |
P337A=Yes P7ACA=Yes P7S1A=Yes P7S2A=Yes S563A=No |
|||||||||
| 01 | Interior light, front | 1 | 03/2017 | 63319277926 | Shop at ECS Tuning | |||||
| 01 | Interior light, front | 1 | 63316827328 | Shop at ECS Tuning | ||||||
| 02 | Interior light, rear | 1 | 63319219498 | Shop at ECS Tuning | ||||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 02 | Interior light, rear | LED | 1 | 11/2017 | 63319277930 | ENDED | Shop at ECS Tuning | |||
| 02 | Interior light, rear | LED | 1 | 63317945984 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Modern Line and Luxury Line and Electric panoramic roof and Light package |
P337A=Yes P7ACA=Yes P7S1A=Yes P7S2A=Yes S402A=No S563A=No |
|||||||||
| 02 | Interior light, rear | 1 | 63319239401 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Sport Line and Modern Line and Luxury Line and Electric panoramic roof and Light package |
P337A=Yes P7ACA=Yes P7S1A=Yes P7S2A=Yes S402A=No S563A=Yes |
|||||||||
| 02 | Interior light, rear | LED | 1 | 02/2018 | 61319277932 | ENDED | Shop at ECS Tuning | |||
| 02 | Interior light, rear | LED | 1 | 61317945953 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof or Light package Sun visor |
S402A=Yes S563A=Yes |
|||||||||
| 03 | Mirror light, LED | 2 | 11/2015 | 63319216245 | ENDED | Shop at ECS Tuning | ||||
| 03 | Mirror light, LED | MSA 3.5K - C | 2 | 63319397852 | ENDED | Shop at ECS Tuning | ||||
| 03 | Mirror light, LED | LED MAKEUP 3.5K | 2 | 63315A42418 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package or Sport Line or Modern Line or Luxury Line |
P337A=Yes P7ACA=Yes P7S1A=Yes P7S2A=Yes |
|||||||||
| 04 | LED module for center console | 1 | 07/2015 | 63319242162 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Modern Line and Luxury Line and Light package |
P337A=No P7ACA=No P7S1A=No P7S2A=No S563A=Yes |
|||||||||
| 04 | LED module for center console | 1 | 07/2015 | 63319237697 | Shop at ECS Tuning | |||||
| For vehicles with Modern Line and Luxury Line and Headlining anthracite |
P7S1A=Yes P7S2A=Yes S775A=Yes |
|||||||||
| 05 | Optical conductor, B-pillar | 2 | 63319242154 | Shop at ECS Tuning | ||||||
| For vehicles with Modern Line or Luxury Line and Fabric/Leather Breeze/anthracite or Fabric/Leather Breeze/oyster/oyster or Sensatec/veneto-beige or Sensatec/black or Leather "Dakota/veneto-beige" or Leather Dakota/black/Accent oyster dark or Leather Dakota/oyster/Accent oyster dark or Leather Dakota/sattel-braun/excl. seam or Leather Dakota/veneto-beige/excl. seam |
P7S1A=Yes P7S2A=Yes CBAT=Yes CBDH=Yes KCDF=Yes KCSM=Yes LCDF=Yes LCL8=Yes LCL9=Yes LCLX=Yes LCLY=Yes |
|||||||||
| 05 | Optical conductor, B-pillar | 2 | 63319242155 | Shop at ECS Tuning | ||||||
| For vehicles with Modern Line or Luxury Line and Fabric Move/anthracite or Fabric Move/amber or Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Sensatec/black/Accent red or Sensatec/black or Leather Dakota/black/akzent-rot or Leather Dakota/everest-grau/akzent-schw. or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
P7S1A=Yes P7S2A=Yes BDAT=Yes BDLI=Yes BEL1=Yes BEL2=Yes KCL3=Yes KCSW=Yes LCL3=Yes LCL4=Yes LCL5=Yes LCLZ=Yes LCSW=Yes |
|||||||||
| 05 | Optical conductor, B-pillar | 2 | 63319242153 | Shop at ECS Tuning | ||||||
| For vehicles with Modern Line or Luxury Line |
P7S1A=Yes P7S2A=Yes |
|||||||||
| 06 | Interior light, B-pillar | 2 | 61319242163 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Sport Line and Modern Line and Luxury Line and Electric panoramic roof and Light package |
P337A=Yes P7ACA=Yes P7S1A=Yes P7S2A=Yes S402A=Yes S563A=Yes |
|||||||||
| 07 | LED for interior lamp | 2 | 63319458476 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Sport Line and Modern Line and Luxury Line and Electric panoramic roof and Light package |
P337A=Yes P7ACA=Yes P7S1A=Yes P7S2A=Yes S402A=Yes S563A=No |
|||||||||
| 07 | Interior light | 2 | 63319253388 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Sport Line and Modern Line and Luxury Line and Electric panoramic roof and Light package |
P337A=No P7ACA=No P7S1A=No P7S2A=No S402A=Yes S563A=No |
|||||||||
| 07 | Interior light | 2 | 63319248671 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Sport Line and Modern Line and Luxury Line and Electric panoramic roof and Light package |
P337A=No P7ACA=No P7S1A=No P7S2A=No S402A=Yes S563A=Yes |
|||||||||
| 07 | LED for interior lamp | 2 | 63319458475 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Sport Line and Sport Line and Edition Luxury Line and M Sport and Modern Line and Luxury Line |
P337A=Yes P7ACA=Yes P7B1A=Yes P7B2A=Yes P7B3A=Yes P7S1A=Yes P7S2A=Yes |
|||||||||
| 08 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 09 | LED Module for armrest | 1 | 63319240235 | Shop at ECS Tuning | ||||||
| 10 | Interior light | 5W TRÜB | 2 | 63316972605 | $11.92 | Shop at ECS Tuning | ||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 11 | LED for interior lamp | HIGH POWER | 6 | 63317941911 | Shop at ECS Tuning | |||||
| 12 | LED for handle recess | 2 | 61319219493 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access or Light package |
S322A=Yes S563A=Yes |
|||||||||
| 13 | Door handle lighting, left | 1 | 63177277447 | +core | Shop at ECS Tuning | |||||
| 13 | Door handle lighting, right | 1 | 63177277448 | +core | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Sport Line and Edition Luxury Line and M Sport and Luxury Line and Light package |
P337A=Yes P7ACA=Yes P7B1A=Yes P7B2A=Yes P7B3A=Yes P7S2A=Yes S563A=Yes |
|||||||||
| 13 | LED module | 3-POLIG | 4 | 63319353133 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Sport Line and Edition Luxury Line and M Sport and Luxury Line and Light package |
P337A=No P7ACA=No P7B1A=No P7B2A=No P7B3A=No P7S2A=No S563A=Yes |
|||||||||
| 13 | LED module / fiber-optic | 4 | 63319350967 | Shop at ECS Tuning | ||||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 14 | Optical conductor door front upper right | 1 | 63319239408 | Shop at ECS Tuning | ||||||
| 14 | Optical conductor, door front upper left | 1 | 63319239409 | Shop at ECS Tuning | ||||||
| 14 | Optical conductor, door rear upper right | 1 | 63319239410 | Shop at ECS Tuning | ||||||
| 14 | Optical conductor, door rear upper left | 1 | 63319239411 | Shop at ECS Tuning | ||||||
| 15 | Interior light | 5W TRÜB | 1 | 63316972605 | $11.92 | Shop at ECS Tuning | ||||
| 16 | Longlife bulb | 5W | X | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
