Single parts, headlight LED for BMW 7 Series F01 LCI 740i (2015)

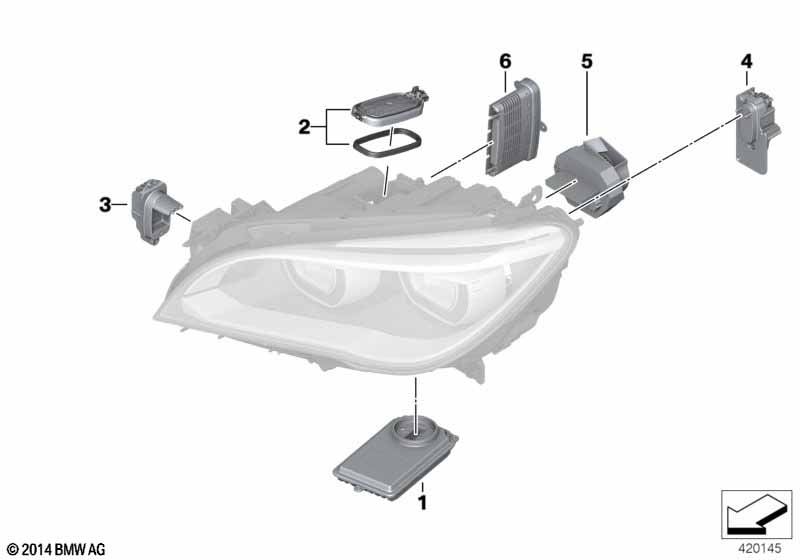

This Single parts, headlight LED technical drawing provides a detailed breakdown of the assembly for the 7 Series F01 LCI 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Adaptive LED headlight |
S552A=Yes |
|||||||||
| 01 | LED main light module | 2 | 63117354974 | Shop at ECS Tuning | ||||||
| 02 | Headlight cover | 2 | 63117345588 | Shop at ECS Tuning | ||||||
| 03 | LED module for cornering light, left | 1 | 63117339023 | Shop at ECS Tuning | ||||||
| 03 | LED module for cornering light, right | 1 | 63117370000 | Shop at ECS Tuning | ||||||
| 04 | LED module turn signal left | 1 | 63117339055 | Shop at ECS Tuning | ||||||
| 04 | LED module for turn signal, right | 1 | 63117339056 | Shop at ECS Tuning | ||||||
| 05 | LED display for fan | 4 | 63117358197 | Shop at ECS Tuning | ||||||
| 06 | Driver module for headlight | 2 | 63117440876 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F01 LCI 740i Single parts, headlight LED?
- This technical diagram illustrates the Single parts, headlight LED within the Lighting group for the 7 Series F01 LCI 740i produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the LED main light module (Part #63117354974).
- Which models use the hardware listed in this Single parts, headlight LED?
- The hardware and components featured in the Single parts, headlight LED are specific to the 7 Series F01 LCI 740i produced during 2015. These technical specifications ensure that parts like the LED main light module (63117354974) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts, headlight LED assembly?
- Each item in the Single parts, headlight LED corresponds to the numbered list below the illustration. For the 7 Series F01 LCI 740i, you can identify the LED main light module by locating its position on the schematic, which then links to the official BMW part number 63117354974 for the Lighting section.
